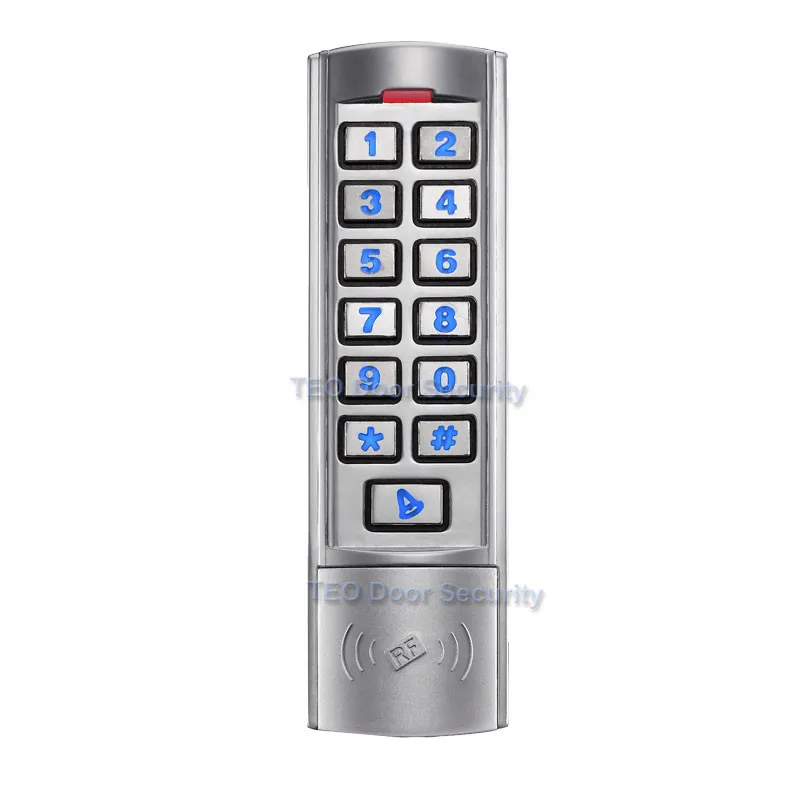

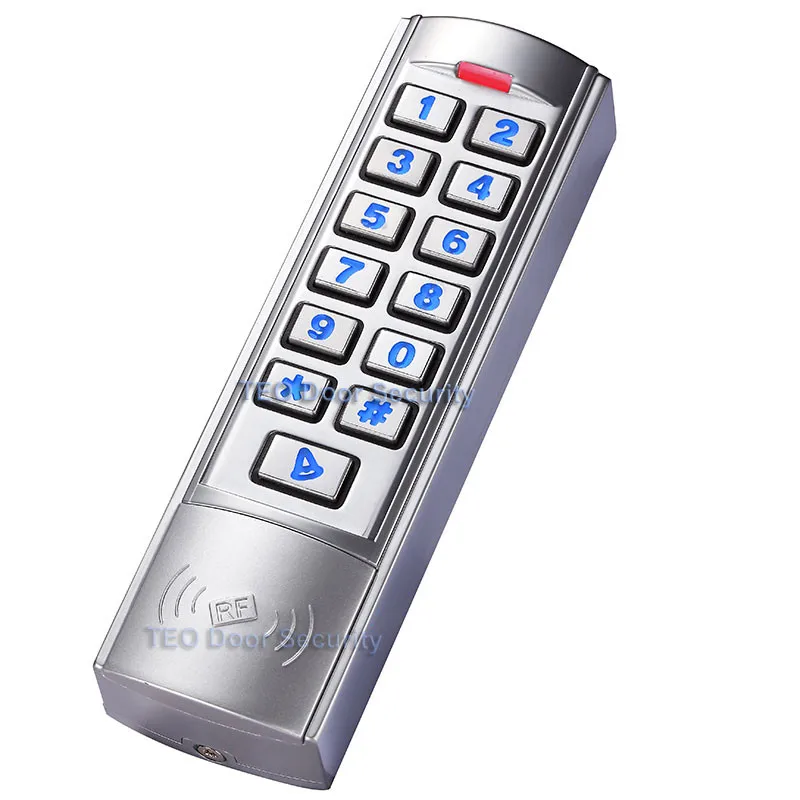

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader.

It is suitable for mounting either indoor or outdoor in harsh environments.

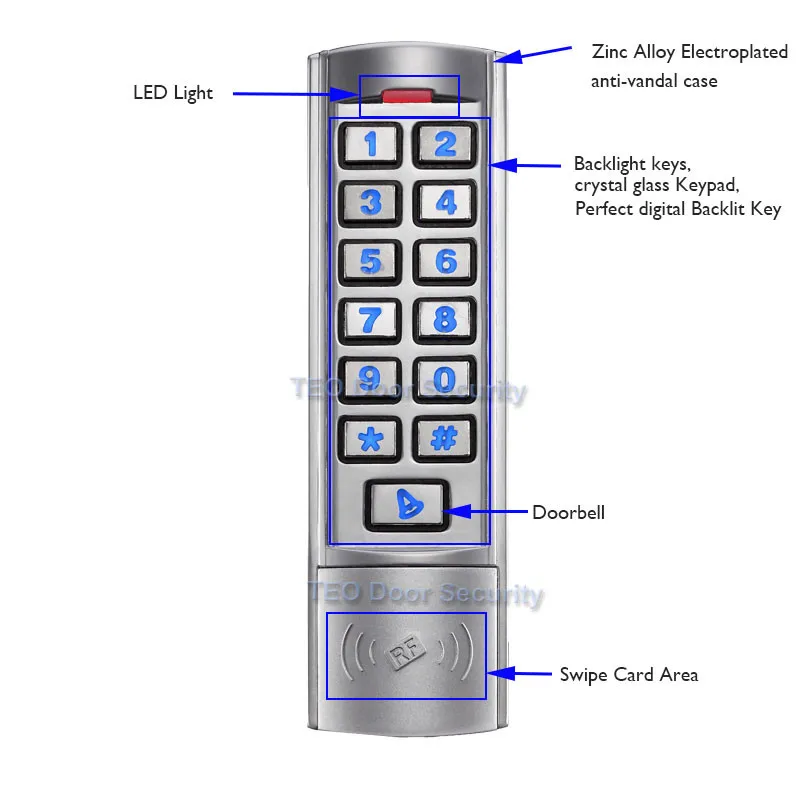

It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish.

The electronics are fully potted so the unit is waterproof and conforms to IP68.

This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card PIN option.

The inbuilt card reader supports 125KHZ EM cards,IF you need 13.56MHz Mifare cards.Please contact us!

The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.

These features make the unit an ideal choice for door access not only for small shops and domestic households

But also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

II.Features

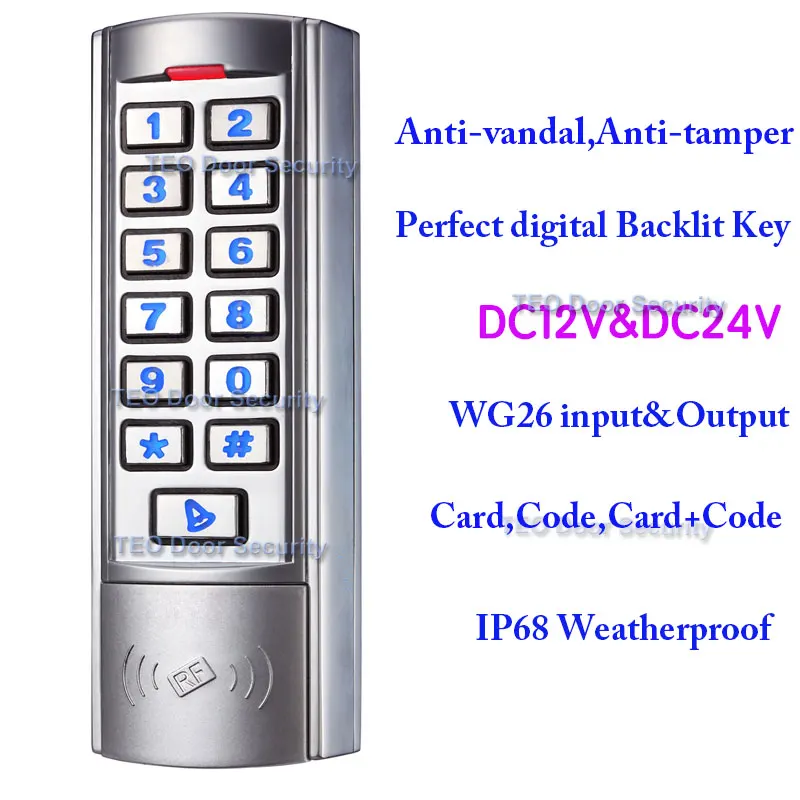

Waterproof, conforms to IP68 Strong Zinc Alloy Electroplated anti-vandal case Full programming from the keypad 2000 uses, supports Card, PIN, Card PIN Can be used as a stand alone keypad Backlight keys,crystal glass Keypad,Perfect digital Backlit Key Wiegand 26 input for connection to external reader Wiegand 26 output for connection to a controller Adjustable Door Output time, Alarm time, Door Open time Very low power consumption (30mA) Fast operating speed, <20ms with 2000 users Lock output current short circuit protection Easy to install and program Built in light dependent resistor (LDR) for anti tamper Built in buzzer Red, Yellow and Green LEDS display the working status III.Specification

Operating Voltage	DC12V&DC24V
User Capacity	2000Users
Card Reading Distance	3-6 cm
Active Current	<60mA
Idle Current	25±5 mA
Lock Output Load	Max 3A
Alarm Output Load	Max 20A
Operating Temperature	-45 to 60degree
Operating Humidity	10%- 90% RH
Waterproof	Conforms to IP68
Adjustable Door Relay time	0 -99 seconds
Adjustable Alarm Time	0- 3 minutes
Wiegand Interface	Wiegand 26
Wiring Connections	Electric Lock, Exit Button, External Alarm,External reader

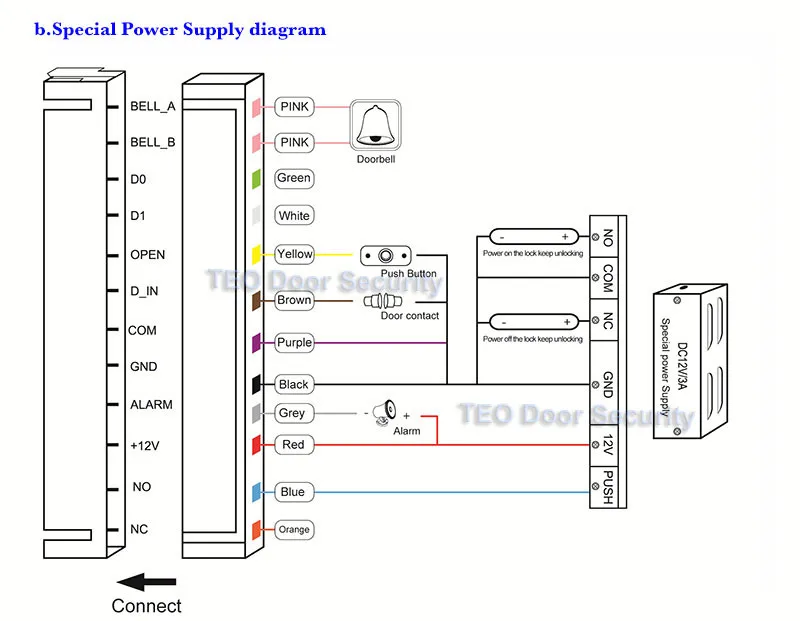

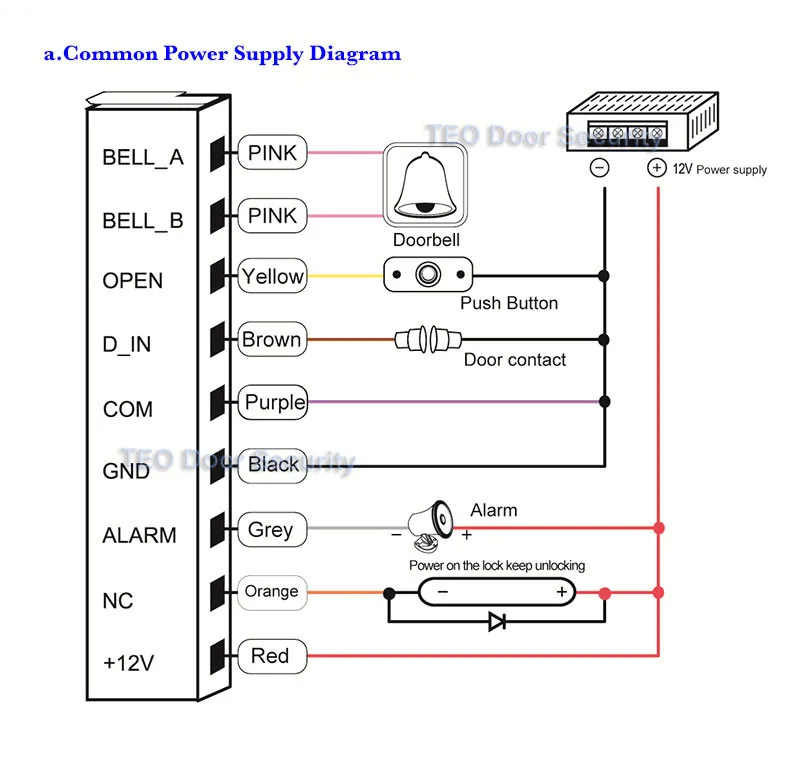

IV.Wiring

Colour	Function	Description
Pink	BELL_A	Doorbell button one end
Pale blue	BELL_B	Doorbell button to the other end
Green	D0	WG output D0
White	D1	WG output D1
Grey	ALARM	Alarm negative(alarm positive connected 12 V )
Yellow	OPEN	Exit button one end(the other end connected GND)
Brown	D_IN	Magnetic switch one end(the other end connected GND)
Red	12V	12V DC Regulated Power Input
Black	GND	12V - DC Regulated Power Input
Blue	NO	Relay normally-on end(Connect positive electric lock "-")
Purple	COM	Relay Public end, connect GND
Orange	NC	Relay Closed end(connect negative electric lock "-")

V.Anti Tamper Alarm The unit uses a LDR (light dependent resistor) as an anti tamper alarm. If the keypad is removed from the cover then the tamper alarm will operate. VI.Sound and Light Indication

Operation Status	Red Light	Green Light	Yellow Light	Buzzer
Power on	-	Bright	-	Di
Stand by	Bright	-	-	-
Press keypad	-	-	-	Di
Operation successful	-	Bright	-	Di
Operation failed	-	-	-	DiDiDi
Enter into programming mode	Bright	-	-
In the programming mode	-	-	Bright	Di
Exit from the programming mode	Bright	-	-	Di
Open the door	-	Bright	-	Di
Alarm	Bright	-	-	Alarm

VII.To Reset to Factory Default a. Disconnect power from the unit

b. Press and hold # key whilst powering the unit back up

c. On hearing two “Di” release # key, system is now back factory settings Please note only installer data is restored, user data will not be affected 1pcs 1P68 Weatherproof Access Controller 1pcs English User Manul 2pcs Screw Other accessories
