Impinj R2000 4 ports uhf rfid reader writer read distance 3~15m (depends on antenna and tag) for access control Product Description

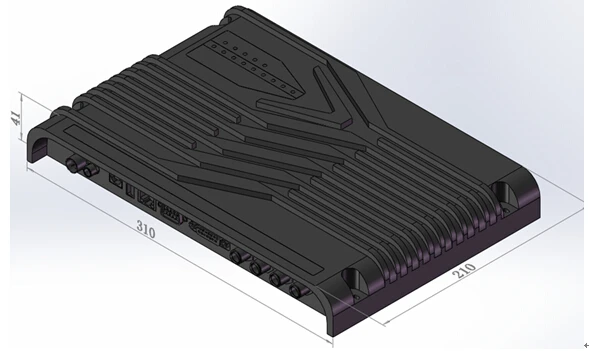

Performance Specifications | |||
Model number | CF-RU6401 | ||
Frequency | 865~868MHz/902-928MHz | ||
Support | ISO18000-6C(EPC C1G2) , ISO18000-6B | ||
Chip | Impinj R2000 chip | ||
Interface | RS232, RS485, RJ45(TCPIP),USB | ||
Power Supply | MIN-8V, TYP-9V, MAX-12V | ||
RF output power | 30dbm(adjustable) | ||
Operating Temp. | -10~ 60 | ||
Storage Temp. | -20~ 75 |
No. | Symbol | Comment |
2 | PWR | 9VDC |
4 | GND | Ground |
1,3 | NC | Reserved |
No. | Symbol | Comment |
1 | NC | Reserved |
2 | TXD | Data output in RS232 |
3 | RXD | Data input in RS232 |
4 | NC | Reserved |
5 | GND | Ground |
6 | NC | Reserved |
7 | NC | Reserved |
8 | NC | Reserved |
9 | NC | Reserved |
No. | Symbol | Comment |
1 | Output1 | General output1 |
2 | Output2 | General output2 |
3 | Output3 | General output3 |
4 | Output4 | General output4 |
5 | Input1 | General Intput1 with Internal 47k resistor pulled-down to ground |
6 | Input2 | General Intput2 with Internal 47k resistor pulled-down to ground |
7 | Input3 | General Intput3 with Internal 47k resistor pulled-down to ground |
8 | Input4 | General Intput4 with Internal 47k resistor pulled-down to ground |
9 | TGIN | Trigger input with internal 10k resistor pulled-up to 5V |
10 | R | R in RS485 |
11 | R- | R- in RS485 |
12 | GND | Ground |
13 | NC | Normal-Close terminal of internal relay |
14 | NO | Normal-Open terminal of internal relay |
15 | CM | Common terminal of internal relay |
Symbol | Comment |

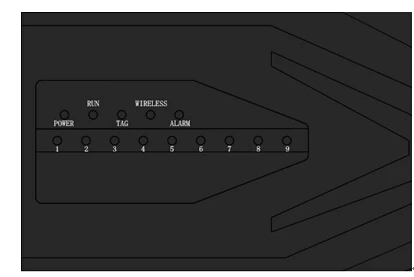

POWER | Power on indicator |
RUN | Command-executing indicator |
TAG | Tag-detected indicator |
WIRELESS | WiFi active indicator |
ALARM | Alarm indicator |
1~9 | RSSI indicator |
Step two: connect the adapter with power supply.
Step three: Connect reader with PC /laptop through RS232 interface or RS232-USB converter, put tag close to the reader

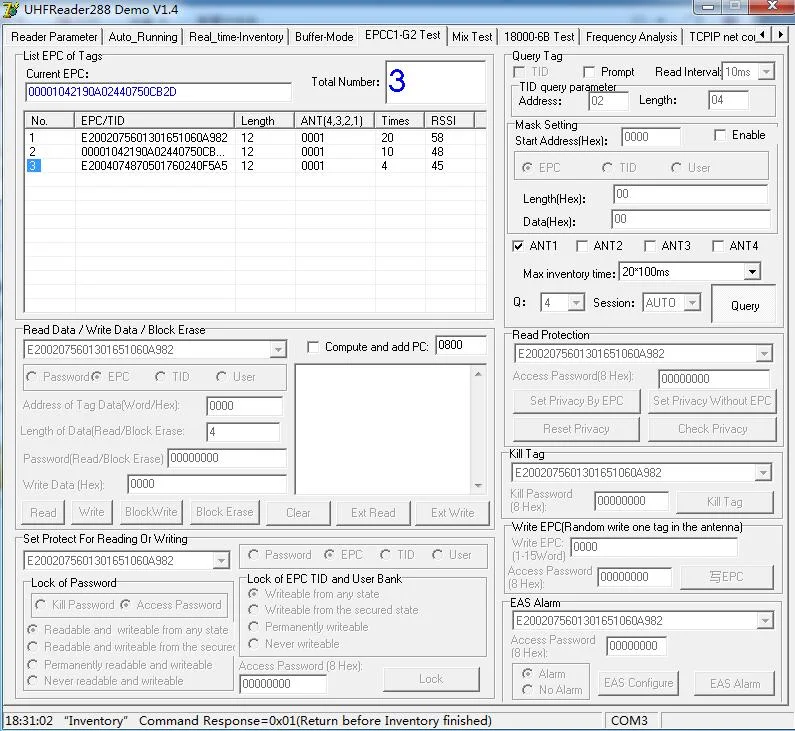

Step four:Open demo software, click "open com port"

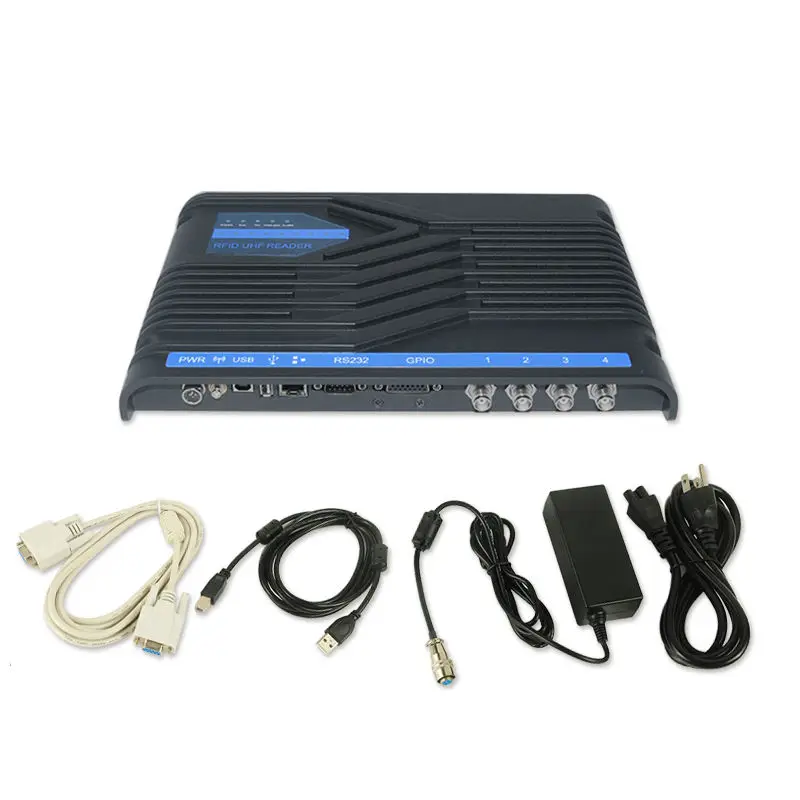

Step five: Click "EPC GEN2 Test", click "Query tag", then the card EPC number will output on the right list. Application This reader can be used to different applications, such as sports timing system, warehouse managementand person management etc. Packing Packing: 1pc/box, box size is 37*28*15cm, the gross weight is 2.85kg. The package include: UHF RFID Fixed Reader*1pc UHF PVC cards*2pcs UHF paper labels*2pcs UHF anti-metal tags*2pcs
