1080p Full Hd MJPEG 30fps/60fps/120fps High Speed CMOS OV2710 Wide Angle Mini CCTV Android Linux UVC Webcam Usb Camera ModuleUSD 38.01/piece
1920*1080p 30fps/60fps/120fps hd cmos OV2710 2.8-12mm varifocal cctv medical board usb camera module for android,linux,WindowsUSD 48.30/piece
ELP 1080P H264 Aptina AR0330 Color CMOS Camera Module USB CCTV full hd 2.8mm Wide Angle lens Camera Module usb with Audio MICUSD 50.60/piece
1080P Hd MJPEG 30fps/60fps/120fps Cmos OV2710 2.8mm lens Night vision Ir cut Infrared Led CCTV security usb board camera moduleUSD 45.10/piece
3mp /2mp 1080P H.264/MJPEG/YUY2 USB2.0 Aptina AR0331 Color CMOS wide angle 2.9mm lens USB 2.0 high speed 1080P WDR Camera boardUSD 126.00/piece
2MP wide angle 180 degree fish-eye lens usb board camera for Android, Linux, Windows CE, Mac OSUSD 41.80/piece
2mp high megapixel1080p cmos OV 2710 30fps mini cctv webcam web camera module autofocus for pc computer,laptop AndroidUSD 46.20/piece

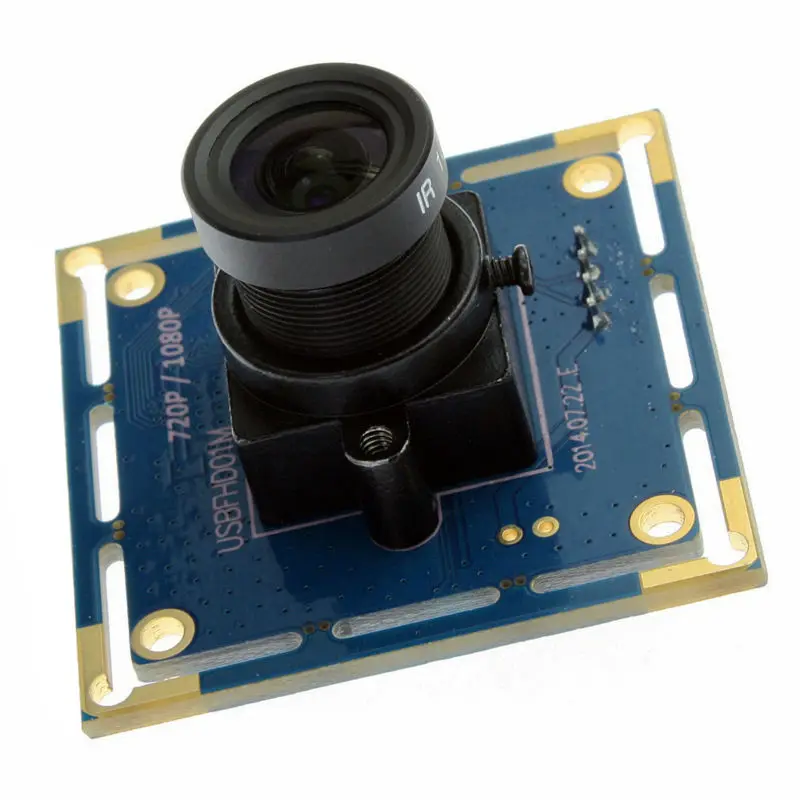

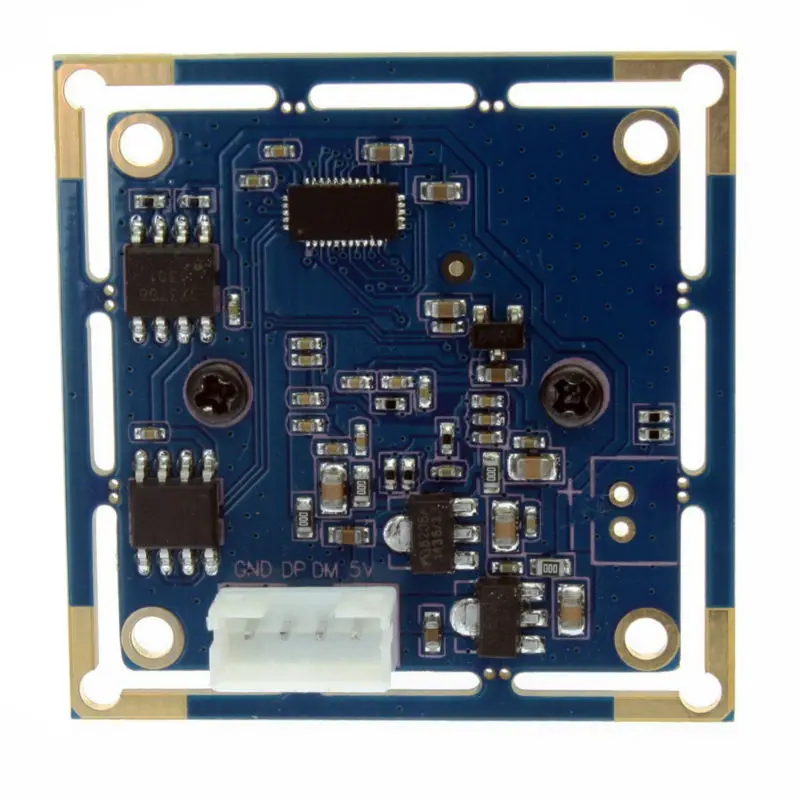

1080P H.264 free driver mini 1/3 cmos wide angle 170degree fisheye lens usb 2.0 camera webcam with microphoneUSD 54.59/piece 1080P high resolution cmos OV2710 micro mini external camera for android smart phone 2MP Webcam ELP Shenzhen China Manufacturer General Description The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics. The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists. Product details: High speed usb 2.0 interface ,1m usb cable. (2m/3m/5m optional)
Equiped with Megapixel 8mm lens( 2.1/2.8/3.6/6/12mm optional)
MJPEG 30fps at 1080P, 60fps at 720p, 120fps at 480p
Advanced OmniVision OV2710 sensor
MIni size, easy to install and use: 32*32/38*38mm
Outdoor true and undistorted color image:
*High Speed 1080P HD USB Camera
*Equiped with 3.6mm standardlens
*Can drive 30fps@1080P and 60fps@720p
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
| Optional models | ELP-USBFHD01M-L80 |
| Sensor | 1/2.7" CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-150 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
