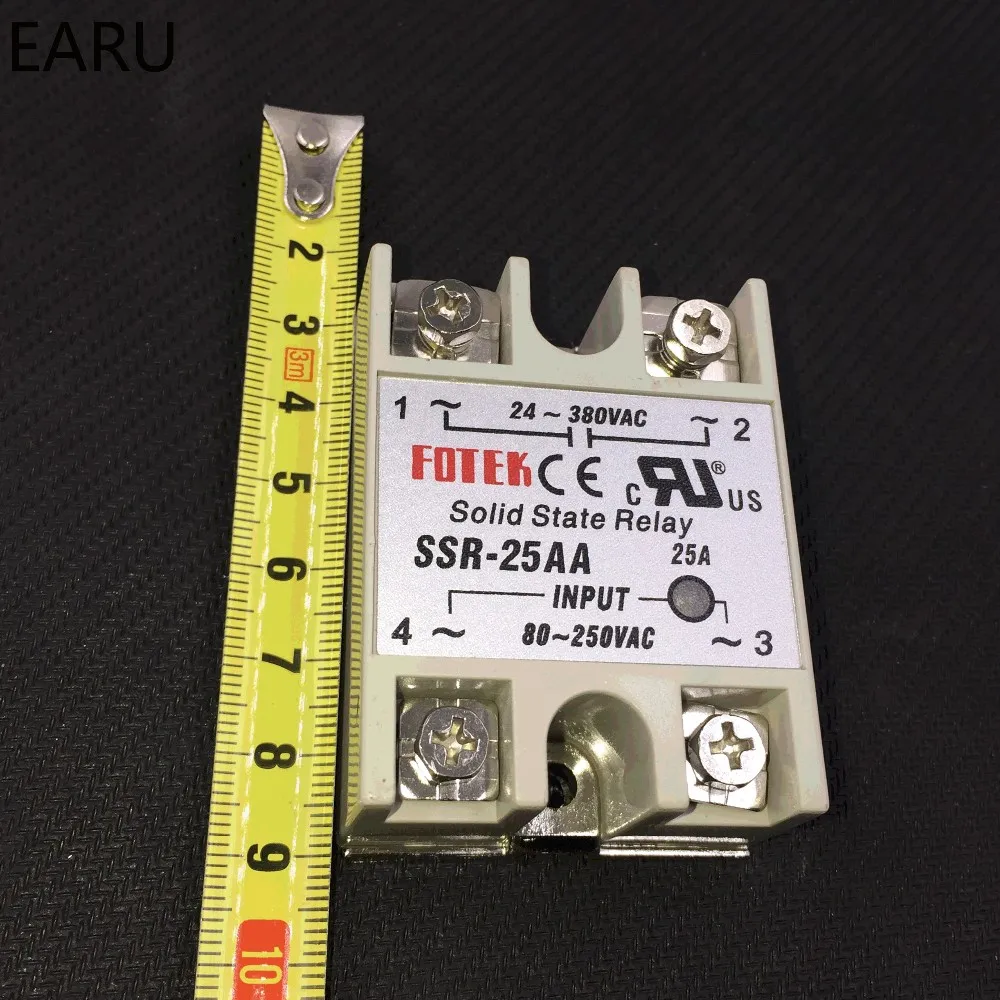

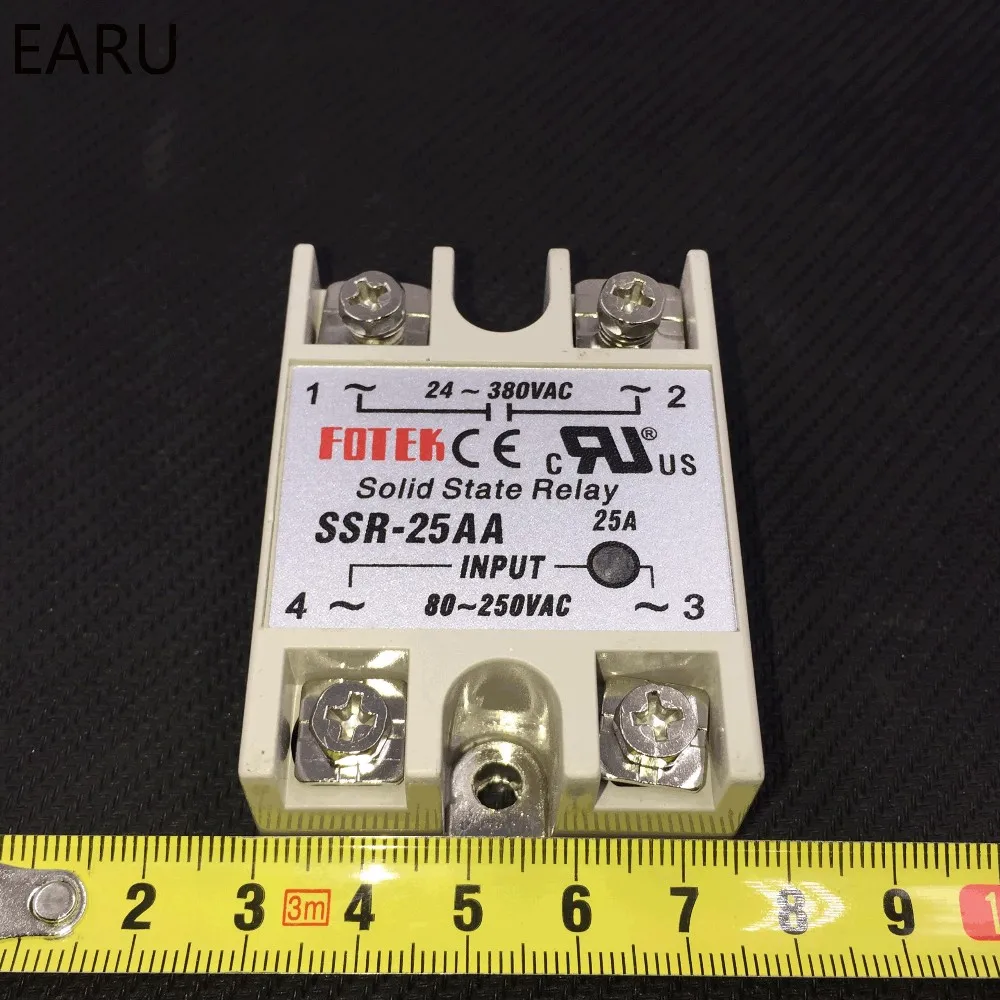

Model | SSR-25AA | |
Control mode | (AC-AC) | |
Load current | 25A | |
Load volt. | 24-380V AC | |
Control volt. | 80-250V AC | |
Control current | AC12mA | |
Leakage current | <=2mA | |
Volt. drop(turn-on ) | <=1.5VAC | |
Turn off period | <=10mS | |
Withstand volt. | 2500VAC | |
Insulation | 500M ohm/500VDC | |
Environment temp. | -30C- 75C | |
Mounting | Screw fixed | |
Indicator | LED | |
N.W | 132g |
