Welcome to Our Store! ****************************************************************************************** 1,Factory directly sales. We need 3-5 days for production. 2,Reply buyer’s questions within 8-24 hours. 3,100% Chinese brand new and 1 year quality warranty.

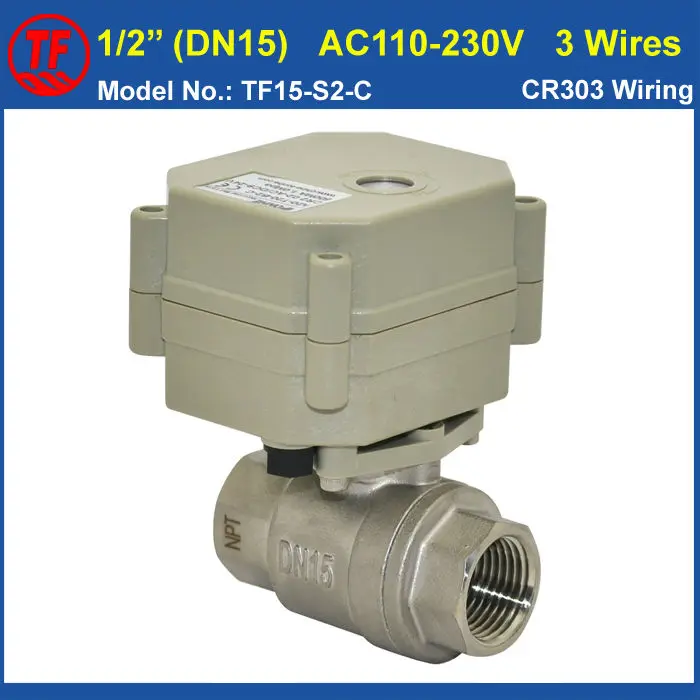

| Model No.: TF15-S2-C | Brand: TF |
| Valve Size: DN15 (1/2\'\') | Voltage: AC110V-230V |
| On/Off Time: 5 Sec | Pressure: Max1.0Mpa |
| Control Wiring: CR303 Wiring (3 Wires) | |
Product size:BSP/NPT1/2", DN15 Valve Body Material: Stainless Steel Working Voltage: AC110V-230V Open/close Time:5Sec Wiring Control Methods:CR3 03 Wiring Maximum Working Pressure:1.0MPa Circulation Medium:Fluid, Air Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power) Life time:100,000 times Actuator Material:Engineering Plastics Sealing Material:EPDM &PTFE Actuator Rotation:90° Max. Torque Force:2N.M Cable Length:0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~100° Manual Override: None Indicator: Yes Protection Class:IP67 ****************************************************************************************** WIRING DIAGRAMS:
****************************************************************************************** Demention Drawing:
****************************************************************************************** Applications: HVAC Fan coil CentralAir conditional System Water Heter solor Waterheating Water treatment water automatic control Equipment Replacing solenoid valve,particularly when solenoid cannot work reliably ****************************************************************************************** How about the quality control of TF brand motorized ball valve? 1, Actuator housing use high quality engineering plastic for prevent aging and UV; 2, Metal gear system can guarantee the valve operation steady and long life working; 3, 200 times electronic performance testing before sending out, each valve should open/closed 200 times by power in this testing; 4, Type ID number to each batch valves; 5, The protection class is also IP67, all actuators are fully sealed to IP67 specifications to prevent water ingress; 6, Floating seal structure, no leak, suitable for heavy dirt or long time working. No leaking, high protection class, NEMA 6 equivalent; 7, Most of other supplier offer reduce port only. TF series motorized valve features a full port ball valve, the valve do not lose any water flow or pressure on the working. 8, Offer NPT thread valve for America and Canada market, and offer BSP thread valve for other country. 9, Different wiring control methods for option which include 2/3/5 wires control, normal open/closed, signal feedback etc. 10. Acquired CE certification and ISO certification. ****************************************************************************************** Product Photos:
