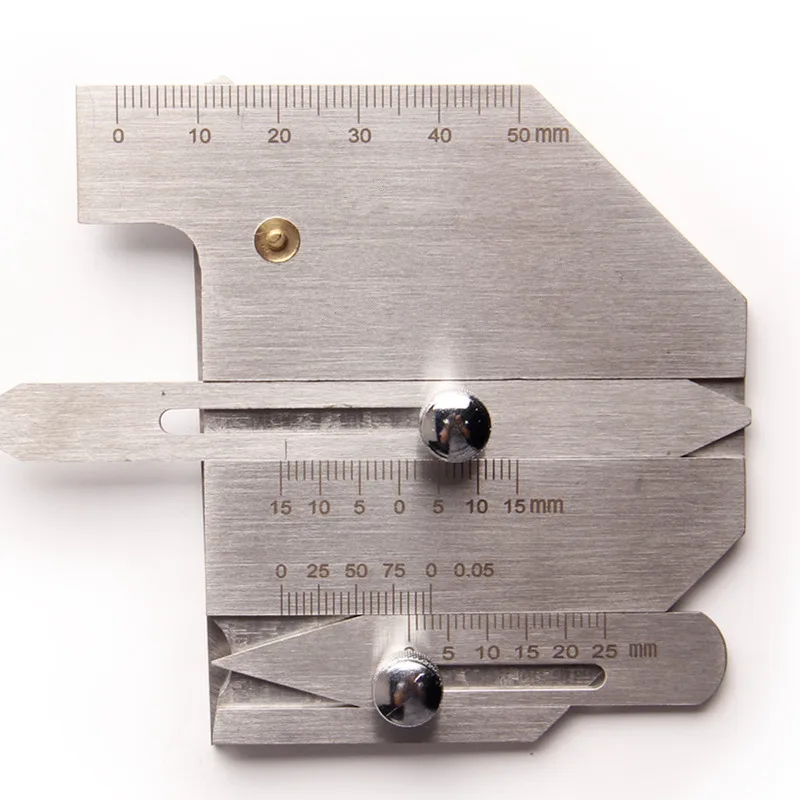

Welding Inspection Ruler Stainless Steel HJC60 Gauge Weld Bead Height Welding Seam Gap Size Measuring Tools

use: The major products are the main scale, height gauge, undercut depth gauge and multi-foot four parts, is a welding inspection feet, for a variety of bevel angle detecting weldments, height, width, gap and undercut depth . It applies to checks on boilers, bridges, shipbuilding, pressure vessels and oil pipelines. Also applies to the measurement of welding requiring high quality components. This product is made of stainless steel, reasonable structure, beautiful appearance, easy to use, wide measurement range. Features

Footweldinginspectionpurposes,measuringrangeTechnicalReferenceasfollows:
Measurementitems		Range(mm)	AllowedDeviation
HJC60
Height	PlaneHeight	0-15	0.2
	Flatwelds		0.2
	Filletweldthickness		0.2
width		0-60	0.3
WeldUndercutdepth		0-5	0.1
Weldbevelangle		80-160°	30’
Gapsize		0.5-5	0.1
