FEATURED FUNCTIONS
| General |

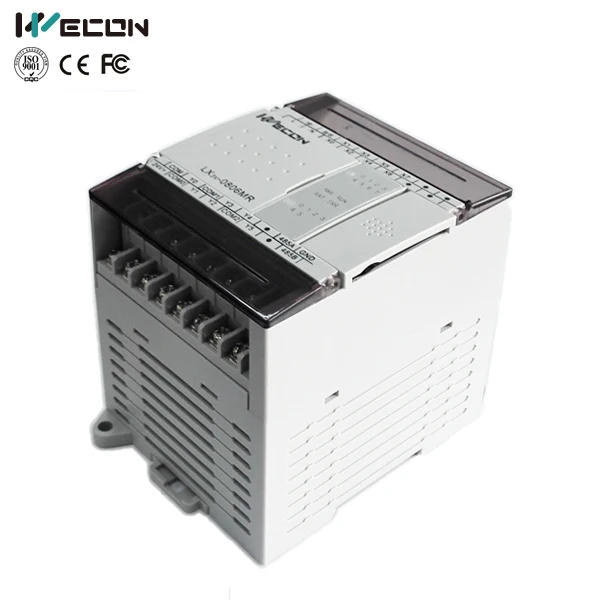

| Item | 0806MR-A1(2)/0806MT-A1(2) | 1208MR-A1(2)/1208MT-A1(2) |
| RUNMode | Scanround/Interrupt |
| Programming | InstructionList/Ladder |
| TotalInstructions | BasicInstructions:27 AppliedInstruction:136 2(2instructionsdifferentfromMitsubishi) |
| ExecuteTime | BasicInstructions:0.06us AppliedInstruction:1~10us |
| ProgramCapacity | 2K |
| Download/Monitor | ProgrammingCable(USBSC09-FXUSBtoRS422) |
| HighPulseOutput | TransistorType:2Channels(4Channels:LX3V-0806MT4H) RelayType:N/A(2Channels:LX3V-0806MR2H) |
| HighSpeedCounter | 6Channels |
| TimerInterrupt | 3Channels |
| LatchedAddresses | Fixedrange |
| StorageDevice | FLASH |
| SerialCommunication | COM1:RS422 COM2:RS485(LX3V-1208M[]C) |
| OperatingTemperature | 0~55 |
| StorageTemperature | -20~70 |
| Humidity | 35~85%RH(No-condensate) |
| ACPowerSupply |
| PowerSupply | AC100~240V50~60Hz |
| PowerOutageTime | 10ms |
| RushCurrent | <15A5ms/AC100V;<30A5ms/AC200V |
| PowerFuse | 250V1A |
| PowerConsumption | <35W |
| PowerOutput | DC24V850mA |
| Output |
| Item | 0806MR-A1(2)/1208MR-A1(2) | 0806MT-A1(2)/1208MT-A1(2) |
| Output | N/A | NPN |
| InputCircuit | DC24V | DC24V |
| OutputCircuit | | DC5~30V | |
| LeakCurrent | N/A | <0.1mA(DC30V) |
| Insulation | Mechanistic | Opticalcoupling |
| Min.Load | N/A | DC5V2mA |
| Max.Load | Resistive | 2Apoints,8A/COM | 0.5A/point,0.8A/COM,0.3A/HSPOpoint |
| Inductive | 80VA | 12W/DC24V(7.2W/HSPOpoint) |
| General | 100W | 0.9W/DC24V |
| ResponseTime | ON | <10ms | <0.2ms (<5us/HSPOpoint) |
| OFF |
PROGRAMMING SOFTWARE Wecon PLC Editor-Programmable Logic Controller(PLC)Programming Software It has been designed as aprogramming tool for the Wecon LX series PLC.And it istotally freefor all its user.
PLC EXPANSION
| BDBoard | Description |
| LX3V-2AD2DA-BD | 2channelsanaloginput(4~20mA),2channelsanalogoutput(4~20mA) |
| LX3V-2ADV2DAV-BD | 2channelsanaloginput(-10~10V),2channelsanalogoutput(-10~10V) |
| LX3V-2TC2DA-BD | 2channelsthermalresistanceinput,2channelsanalogoutput(4~20mA) |
| LX3V-2PT2DA-BD | 2channelsthermocoupleinput,2channelsanalogoutput(4~20mA) |
| LX3V-4ADI-BD | 4channels analog input (4~20mA) |
| LX3V-4ADV-BD | 4channels analog input (-10~10V) |
| LX3V-2RS485-BD | ExtendedCOMport(RS485) |
| lWeconLX3VPLCModules |
| Module | Description | Module | Description |
| LX3V-16EX | 16inputterminals(X) | LX3V-4AD | 4channelsanaloginput |
| LX3V-16EYR | 16relayoutputterminals(Y) | LX3V-4DA | 4channelsanalogoutput |
| LX3V-16EYT | 16transistoroutputterminals(Y) | LX3V-4PT | 4channelsthermocoupleinput |
| LX3V-1WT | 1channelweighingsignalinput | LX3V-4TC | 4channelsthermalresistanceinput |
| LX3V-2WT | 2channelsweighingsignalinput | LX3V-4LTC | 4channelsthermalresistanceinput (PID) |
FACTORY Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sellshuman machine interface (HMI), programmable logic controller(PLC).
WARRANTY & SHIPMENT All of Wecon products are covered18month warranty.
Normally we ship out the goods within 5 days after payment received.
