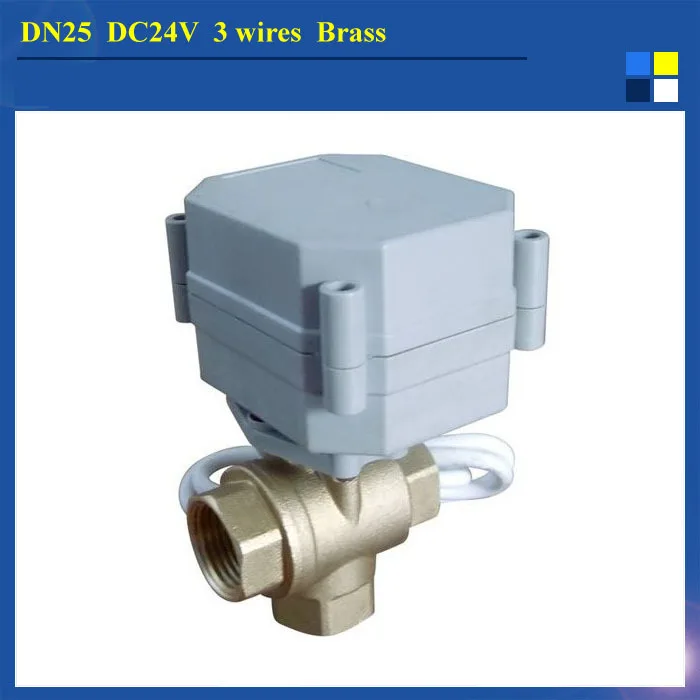

Solar Water Heater use DN25 3 way T type motorized valve 24V dc 3 wires 1.0Mpa 2-90 degree C Flow Direction T Type WIRING DIAGRAMS: Description: Product size:BSP/NPT 1", DN25 Valve Type:3 way T type Valve Body Material:Brass Working Voltage:DC24V Open/close Time:5 sec Wiring Control Methods:CR3 01; Maximum Working Pressure:1.0MPa Circulation Medium:Fluid, Air Working Current:500MA Life time:70,000 times Actuator Material:Engineering Plastics Sealing Material:EPDM &PTFE Actuator Rotation:90° Max. Torque Force:2N.M Cable Length:0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~90° Manual Override:NO Indicator:NO Protection Class:IP67 Demention Drawing: Please check the demension before you place the order, the "d1" is 24mm, and the "w1" is 8mm. Applications: HVAC Fan coil CentralAir conditional System Water Heter solor Waterheating Water treatment water automatic control Equipment Replacing solenoid valve,particularly when solenoid cannot work reliably
