30W Al Metal Mark Fiber Laser Marking Engraving Machine Portable Cabinet 220V Desktop Laser Engraving Cutting MachineDefault marking area:100*100.Power output:30wInput Voltage:220VInput Frequency:50HzControl Language:EnglishWorking Table:FixedStand Height:500mmMachine Case:Standard deskFiber Laser: Raycus 30w Q-switch Fiber Laser(Best laser made in China)With red beam position function.If you need other function, like rotate marking, flying marking,multiply positon marking, just ask more information from Tom, skype, westseasons.

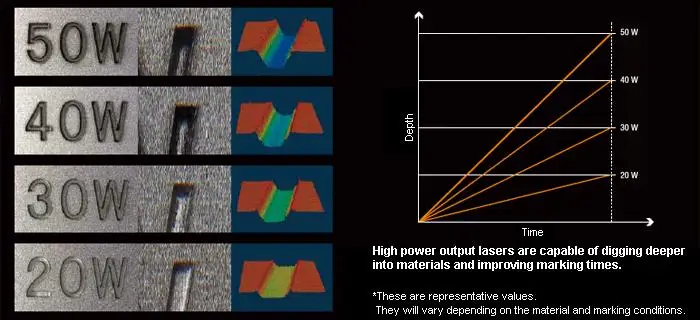

Operating PrinciplesThe output of fiber laser marking machine is integrated fiber laser, with high speed scanning system, it can mark really fast. The power Energy conversion rate of fiber laser can reach 70%, which makes the fiber laser marking machine work less power consumption. Fiber laser machine don\'t have consumable parts, so the fiber laser machine don\'t need to change any parts during usage, the work lifespan is longer than other laser machines. The fiber laser life can up to 1 00000 hours.Different Marking result with different power, 30w fiber laser can mark quicker and Deepper than 20w and 10w.
Technical Parameter: | LaserMachine Parameter | |
| Parameter | ML-30W-DR2 |
| Wavelength | 1064±4nm |
| polarization | Random |
| Power | 20w |
| singlepulseenergy | 0.8~1.0mj |
| Laserbeam | <1.7m2 |
| Spotdiameter | 7~9mm |
| Stability | <5% |
| Frequency | 30~60kHz |
| Pulsewidth | 80~140ns |
| Pulserange | 5~100% |
| voltage | 100-240VAC |
| Fiberlength | 1.5m |
| Coolingsystem | forcedair |
| WorkingTemperature | 0~35° |
| WorkingHumidity | 10~95 |
| MarkingParameter(FocalLength:140mm) | |
| MarkingSpeed | <9000mm/S |
| MarkingDepth | <=0.3mm |
| RepetitionPrecision | ±0.01mm |
| Min.LineWidth | 0.02mm |
| Min.Character | 0.2mm |
| GrossPower | <1000W |
| SafetyProtectionClass | IP54 |
| LaserGeneratorSafetyClass | IV |
| MarkingAngles | AnyAngles |
Characteristic1. Less power consumption,less than 800W.2. Small size, air-cooled , easy to carry and transport.3. High electro-optical conversion rate,maintenance free.4. High stability,easy to operate.5. Broad application: barcode marking,two-dimensional code, text graphics, regular and irregular transaction mark.6. Multiple Marking form: Flying Marking,Line Printer, Rotating Marking.Multistage Marking.7. Deep carved marking. Black marks on Al material.8. Support different file formats: PLT, AL, DXF, BMP, JPG and so on.9. Can be customized according to customer demand.Fiber Laser Machine Application: | Metal | Non-metal |
| Aluminum | PolybutyleneTerephthalate |
| Stainless | Makrolonpolycarbonate |
| Copper | Black/WhiteABS |
| SiliconSteel | Nylon |
| YellowChromateAluminum | Polysulphone |
| Brass | RynitePET |
| NickelPlatedBrass/Gold/Kovar/steel | Santoprene |
| NickelPlated1215MildSteel | SiliconCarbide |
| Hardcoatanodizedaluminum | Glassfilledteflon |
| MachineToolSteel | WhitePEEK |
| Magnesium | GlassfilledPEEK |
| MetalPlatedCeramics | SiliconWafers |
| Molybdenum | CarbonNanotube |
| CarbonFiber/CarbonNanotube | ColoredDelrin |
| Clearcoatanodizedaluminum | GEPlasticsPolycarbonateResin121-R |
| CobaltChromeSteel | |
| CompactedPowderIron/IronPhosphateCoating |

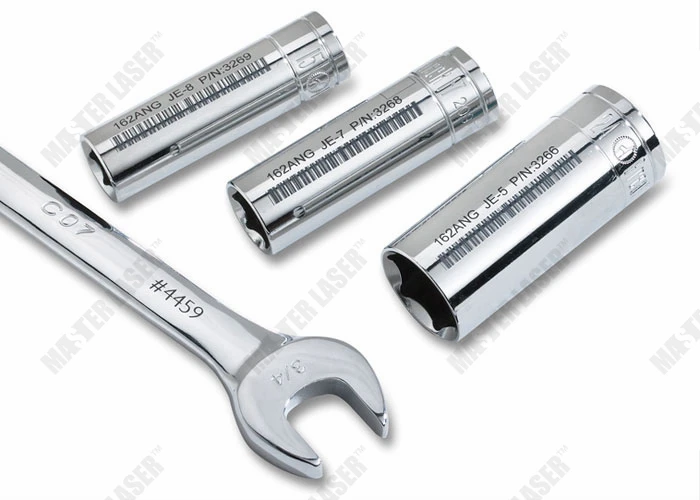

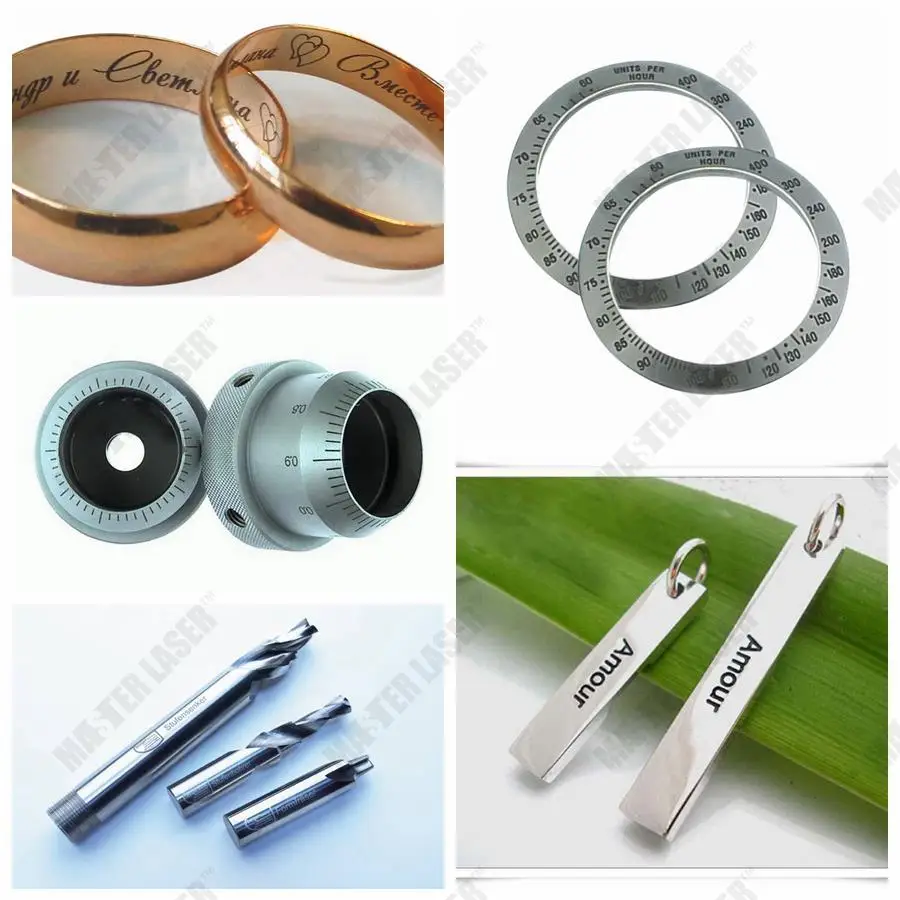

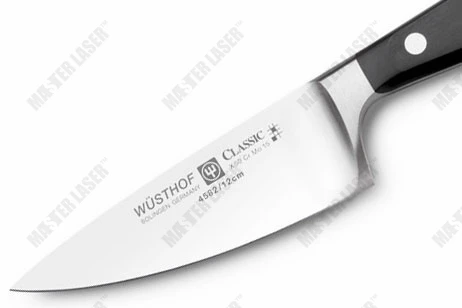

Appliedindustrial:

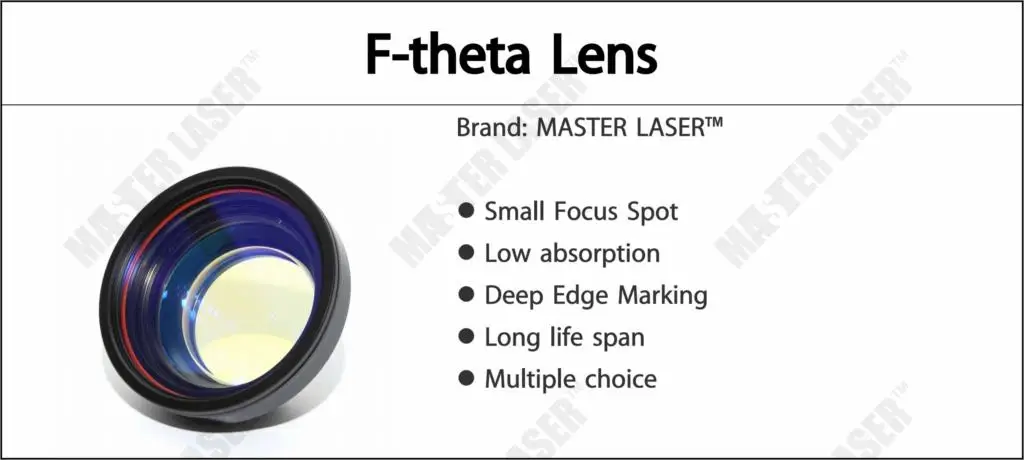

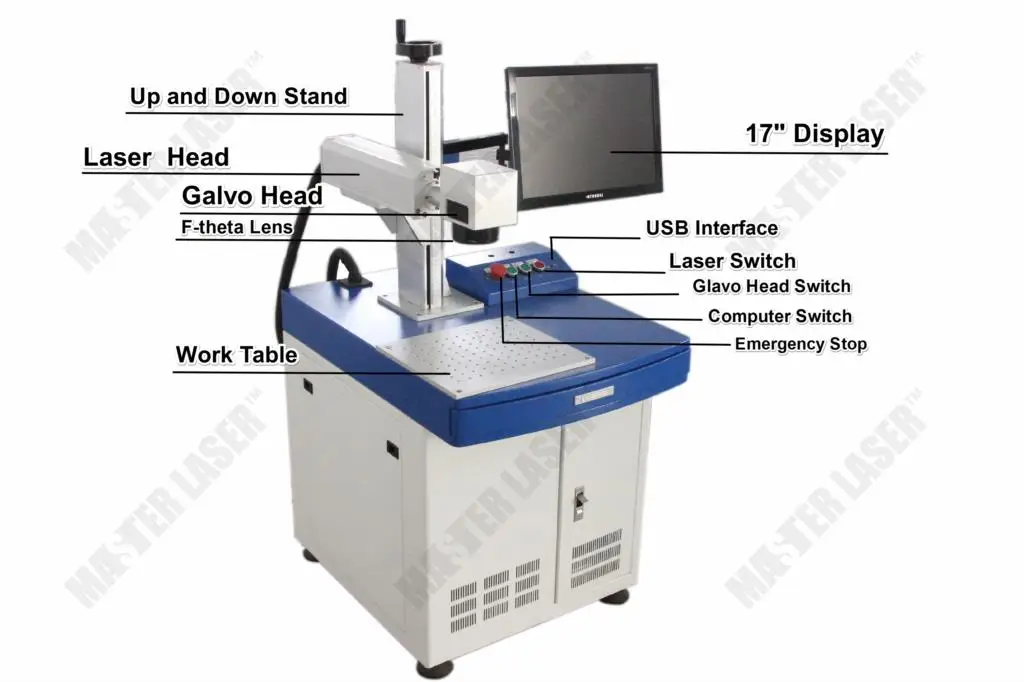

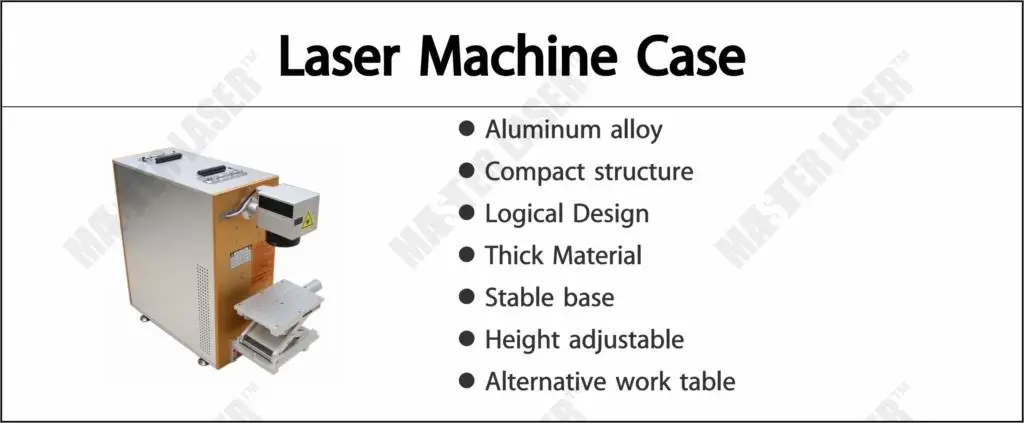

Features:vHighlyintegrated,smallsize,easytocarryandship.vAllaluminumframe,beautifulandelegantvStableOutputlaser,superiorlaserbeamvWiderangeofapplication,aluminum,copper,goldandsilvervHighspeed,excellentperformancevFullsizeworkingareaavailable,from70*70to210*210vFlyingmarkingavailable,noextrafeeforsoftware Parts

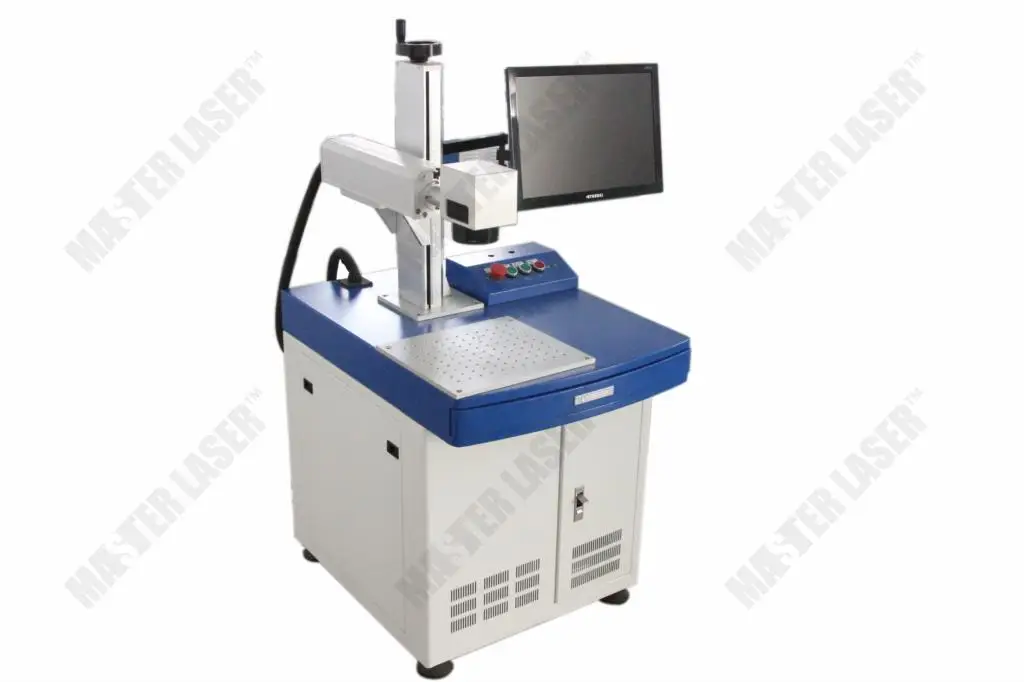

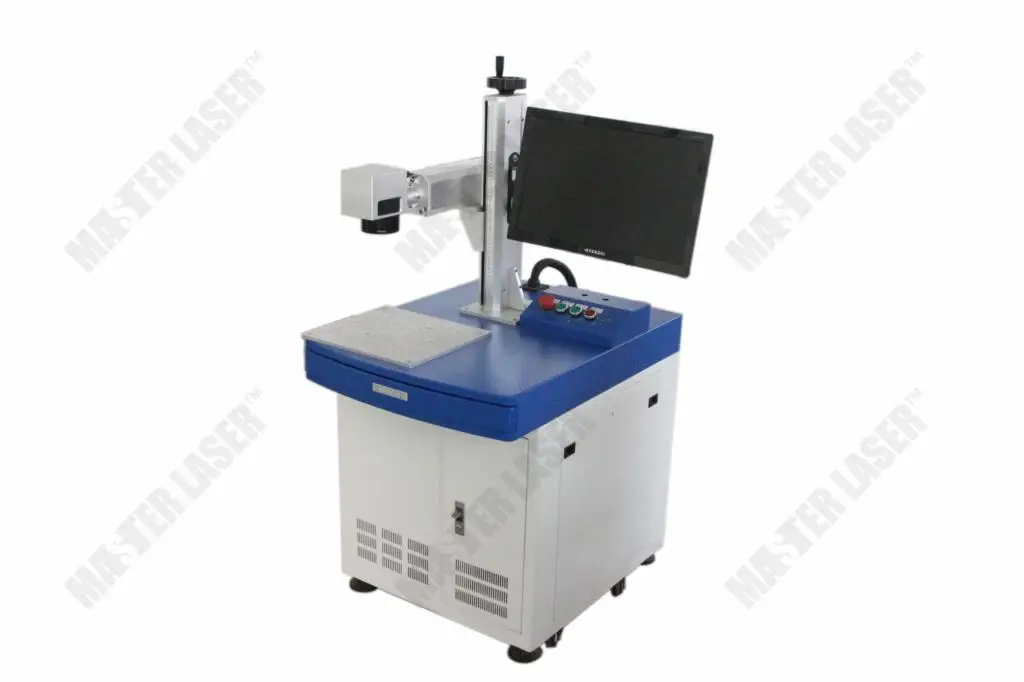

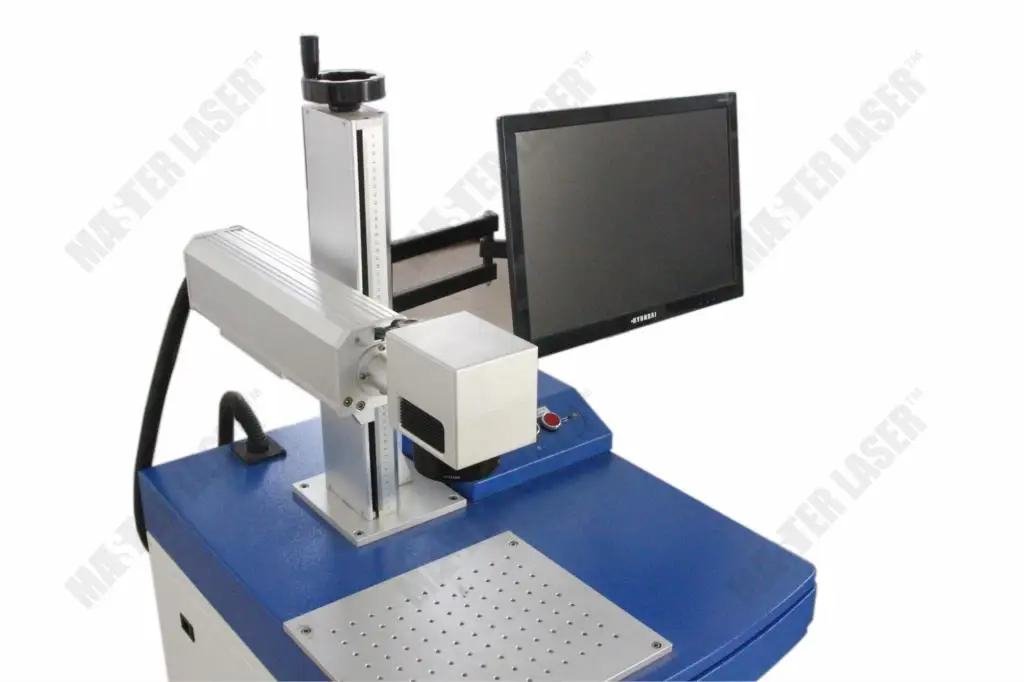

PICTURES:There is no logo on the machine surface, you can resell it oruse it yourself.

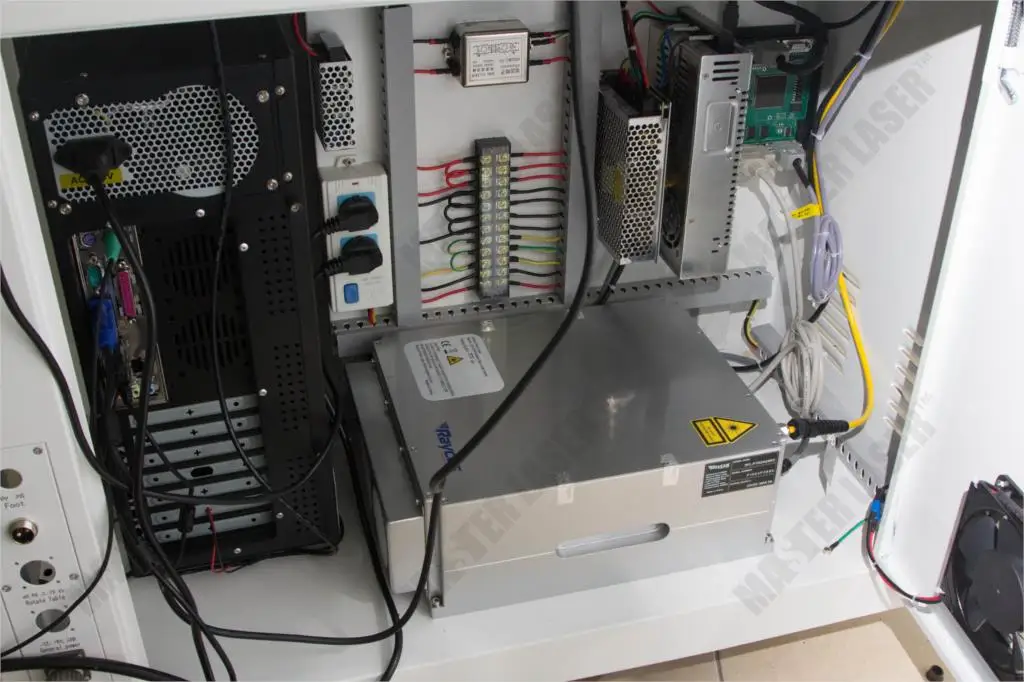

Inside
SIZE
