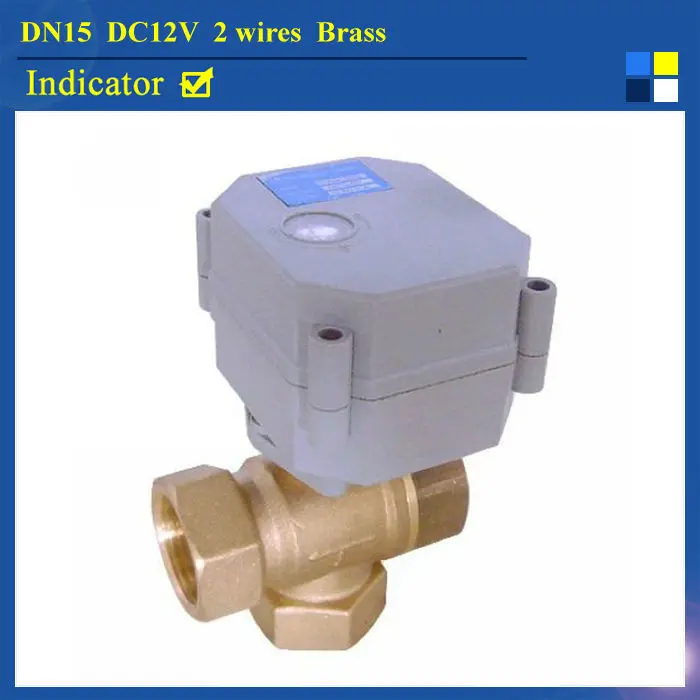

DN15 DC12V 2wires 3 way Automated Ball Valve T type BSP/NPT 1/2'' Brass Valve with position indicator

Click here Check price!!!
Notice: This valve is reduced port. Please check the detailed dimension carefully before buying. Or any dispute regarding “reduce port” is not accepted! 3 way Automated Ball Valve T type BSP/NPT 1/2\'\' DC12V 2 Wires DN15 Brass Valve with position indicator Notice: 1). Factory directly sales,weneed about3-5 business dayfor production! 2).If you choice China Post Air Mail for shipping,wecan\'t promise the delivery time. WIRING DIAGRAMS: Description: Product size:BSP/NPT 1/2", DN15 Valve Type: 3 way T type Valve Body Material:Brass Working Voltage:DC12V Open/close Time:5 sec Wiring Control Methods:CR2 01; Maximum Working Pressure:1.0MPa Circulation Medium:Fluid, Air Working Current:500MA Life time:70,000 times Actuator Material:Engineering Plastics Sealing Material:EPDM &PTFE Actuator Rotation:90° Max. Torque Force:2N.M Cable Length:0.5m Environment Temperature:-15°~50° Liquid Temperature: 0°~90° Manual Override:NO Indicator: Yes Protection Class:IP67 Demention Drawing: Please check the demension before you place the order, the "d1" is 15mm, and the "w1" is 7mm. Applications: HVAC Fan coil CentralAir conditional System Water Heter solor Waterheating Water treatment water automatic control Equipment Replacing solenoid valve,particularly when solenoid cannot work reliably
