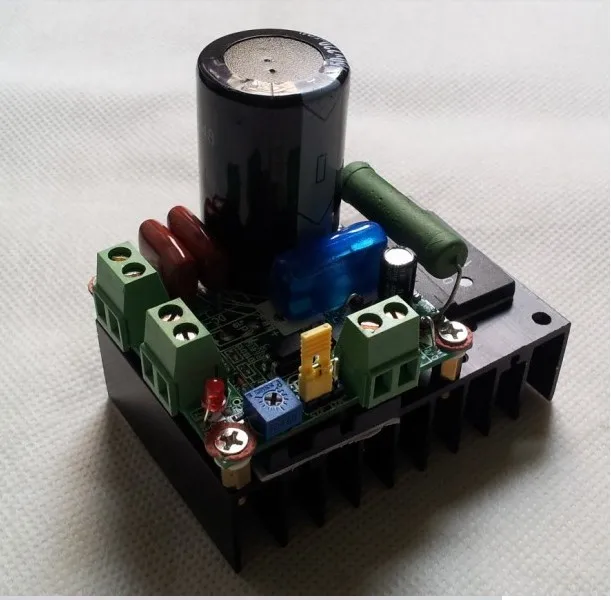

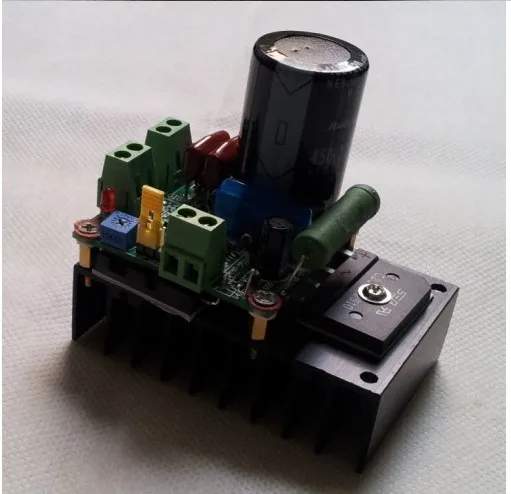

Product name: dc motor speed regulatorA, use:
5 v to 110 v dc motor, speed of dc motor. Such as dc water pump, fan, carving machine spindle etc equipment for precise speed control of dc motor speed.
Second, features:
1. To support the ac and dc input. There is no power supply polarity.
2. High voltage range. . Support dc 15-160 VDC input. Communication support 12-110 vac input. Note: this controller to control dc motor work, power supply the highest is 110 vac, cannot meet the 220 v direct access. 3. Large radiator equipped with mounting holes.
4. Large power control. Can support 5 a current.
5. Besides plate inside can generate PWM speed regulation, can also support external PWM speed control signal input control, the PWM input requirements as follows: 3.5 12 v VPP level, frequency of 1 k to 10 KHZ, especially suitable for MCH3 spindle speed regulation.
6. Support the motor range. Base on market to all of the dc motor drive speed control into the letter. As long as the dc resistance of the dc resistance of motor is greater than the 2 o. Please pay special attention to, the driver can\'t on dc resistance of less than 2 euro dc motor speed control. Conversion rate by about 97%, the board itself is the power consumption at the same time in the voltage is not consumed power is different also, 160 VDC, 2 a motor load, the limit of not more than 2 w.
Control panel with direct current machine, this paragraph within 5 a adapter current, resistance is greater than 2 r below 110 v motor.Control panel with direct current machine, this paragraph within 5 a adapter current, resistance is greater than 2 r below 110 v motor.
