RFID manufacture 860~928Mhz 12m 12dbi linear uhf antenna with N-female connector used for parking and warehouse management

Click here Check price!!!
RFID manufacture12m 860~928Mhz 12dbi linear uhf antenna with N-female connector used for parking and warehouse management Product Description

Performance Specifications
Model number	CF-RA1201
Frequency	865~868MHz/902-928MHz
Gain	12dbi
Polarization	Horizontal
Half-power beam width(°)	Hor:40 Ver:40
V.S.W.R	≤1.3
Front-to-back ratio(dB)	≥25
Maximum input power(W)	50W
Impedance	50 Ω
Lightning protection way	DC Ground
Mechanical specification
Connector	N-female
Connector position	Bottom
Size(mm)	450*450*40
Packing size(cm)	62*51*14
Antenna weight(kg)	2.5
Packing weight(kg)	4
Wind loading area(m²)	≤0.2
Rated wind velocity(m/s)	60
Radome material	ABS
Reflector material	Aluminum
Radome color	Black
Operating temperature(°c)	-40~ 80°
Mounting hardware(mm)	Φ40~50

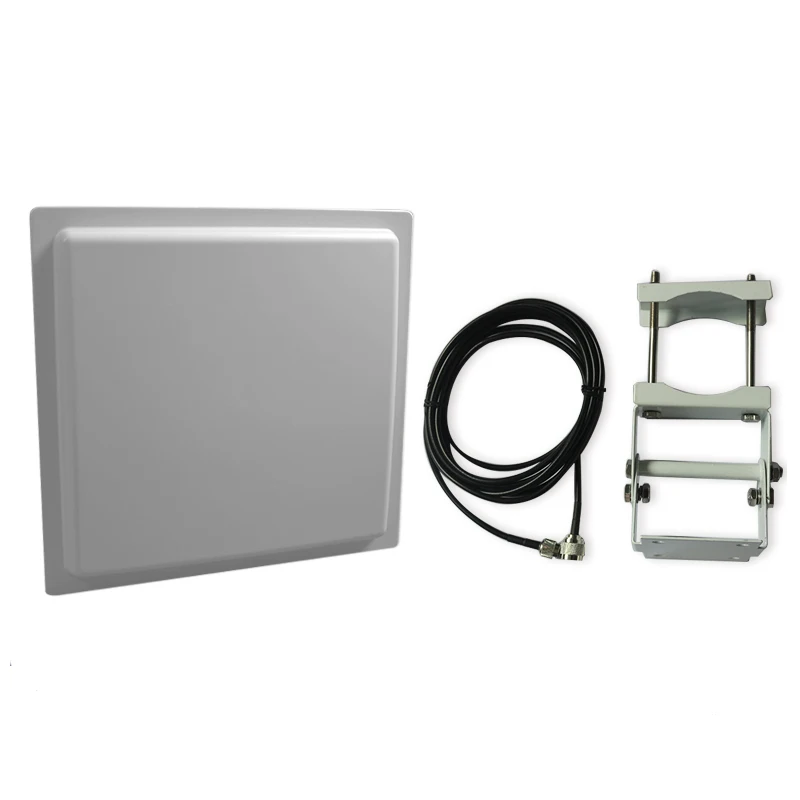

Detailed Images This antenna is with 12dbi gain and horizontalpolarization, made of ABS material,the accessories include foothold and cable, standard cable length is 3m. Application This antenna can connect with the UHF fixed reader, can be used at different kinds sports timing system, such as running race,bicyle race etc. Packing & Delivery Packing: 1pc/box, packingsize is 62*51*14cm, the gross weight is 4.5kg. Note: Please kindly inform me the connectorrequest when you place an order.
