ToRussianfriends: 1.Please leave yourfull name(first name, middle name, last name)for sending order. 2.Besides, if more pcs we can send order bySPSR, which will be faster. Please let us know when ordering if you have any problems about SPSR. Thank you! Camera supportFirefox, Safari, Chrome(lower then version 45), IE8-IE11 in Windows system andMac OCX,please check below picture. Besides, DoNOTsupportChrome(higher than version 45) and Edge browser of Windows 10 Login inFirefox
Login inSafari
Login inChrome

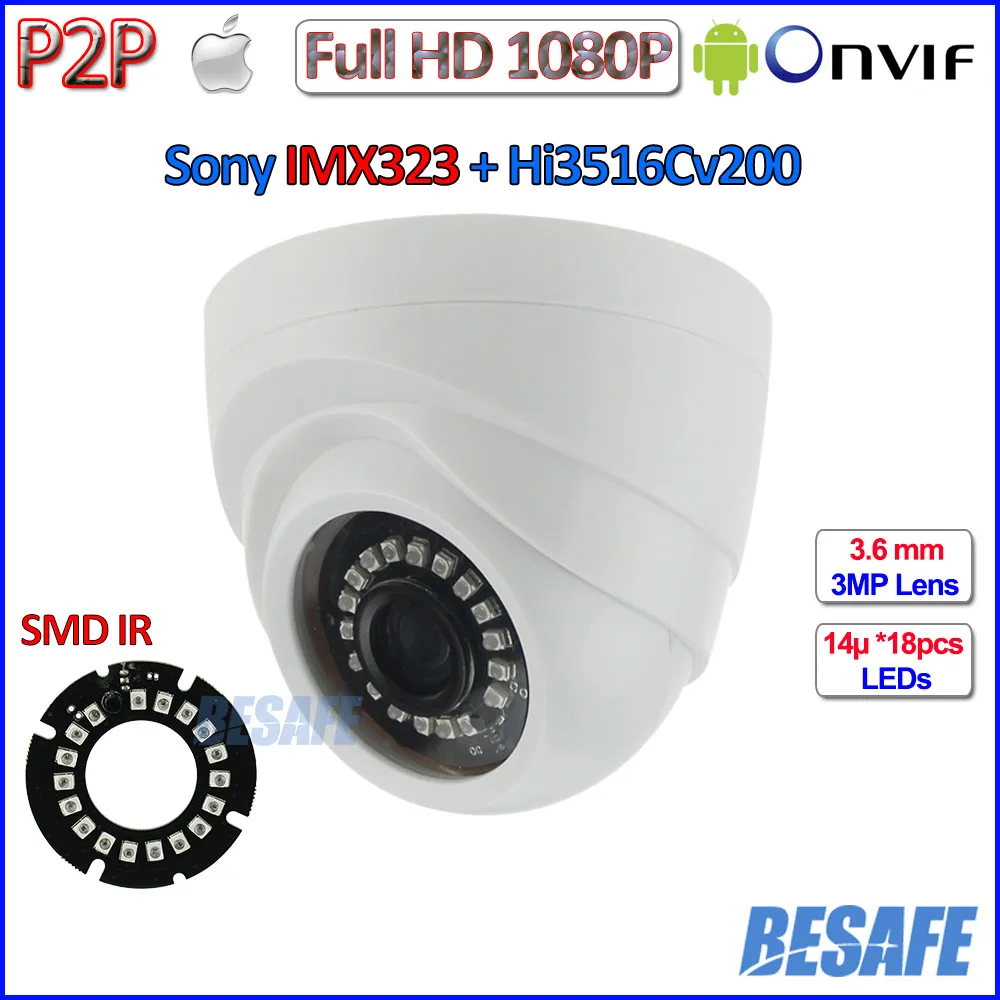

| Modelname | BS-IRDLS200 |
| Solution | SONYIMX323 HI3516Cv200 |
| Description | 2.0MP1080PIPcamera |
| MinimumIllumination | 0.01Lux |
| S/NRatio | morethan50db |
| Shutter | 1-1/10000s(adjustable) |
| Lens | 3MPHD3.6mmLens |
| Day/Night | IR-CUT |
| IR | SMDIR LED14miu * 18pcs, 20Meterrange |
| VideoCompression | H.264/JPEG |
| BitRate | 64-12000Kbps |
| Resolution | 1920×1080 |
| FrameRate(real1080P) | 50Hz:25fps(1920×1080) 60Hz:30fps(1920×1080) |
| Imagesetting | Brightness,contrast,saturation,sharpness |
| BacklightCompensation | Support |
| Storagefunction | FTP,Local,NVR,SMTP |
| Onvif | Onvif2.4(port:8999) |
| Intelligentalarm | Motiondetection,Privacy |
| Protocol | TCP/IP,HTTP,DHCP,FTP,DNS,DDNS,RTSP,NTP,SMTP |
| Generalfunction | Triple-Stream/Mirror |
| Communicationinterface | RJ45(10M/100M)AdaptiveEthernetport |
| Temperature | -20- 55degree |
| Humidity | 0%-90% |
| Power | DC12V(Not included) /PoE isOptional |
| Language | 17kind(English,Russian,Espanol,Portuguese,French….) |
| compatibility | Hikvision,DahuaandotherNVRwhichsupportonvif |
| Mobliesupport | IphoneandAndroid |
| defaultIPaddress | 192.168.1.168 |
18LED, 20Meters IR Range:
Camera dimension(mm):
How to connect IP camera?
CableConnecting(IP66 design):
IP searcher After connecting our IP Camera to your computer or Router or interchanger, and make sure it has power on. 1. Get software “IP Search.exe” from CD disk and install it
2.Click “search” button, you can see IP camera shown withdefault ip address(192.168.1.168) 3. then change ip address according to your networksegment 4. Finally click button “modify IP”, after some seconds click again “search” button and you will have IP camera with new IP address. Please check below pictures.
IE login(or viaFirefox, Safari, Chrome) 1. open your browser and Enter URL : 192.168.1.168(or IP address you change finally) 2. if first time login, you need to download an OCX activeX
3. download and install this OCX, refresh website then you will see below login interface. 4. choose your language then enter user name and password, both are “admin”(default)
Motion detection setting when you want to set motion detection, you need to tick where shown in red in below photos. choose sensitivity of motion detection, can choose from 0 to 10
if you donot want some areas shown, you can choose up to 3 areas on "privacy"
then you can set up SMTP server or FTP server when motion detection recording Besic Setup
DDNS
FTP
SMTP
you can adjust image of camera, IR-cut Mode, white balance....
Most important is--This camera hasWDRfunction. WDR mode:
If you want to watch video from your mobile phone(Android or Iphone), you need to set camera in below picture
Triple stream:
Stream one
Stream two
Stream three
Computer Client Software CMS install CMS Find“HeroSpeedCMS.exe”from CD and install it
choose your language,
if first time login, you need toregister
Search Add Device 1.open CMS software, click “Search Device” to search for device in LAN, or add device manually.
2. add device manually
BEsafeCMS introduction
BEsafeP2P Mobile phone function 1.download "freeip"appfrom app store or scan QR code from IE interface 2, 3. user register 4. add device 5-1. scan QR code from IE interface 5-2. input serial number manually
P2P real shooting from mobile phone A: photo of stream one B: photo of stream two C: night vision D: recording by mible phone
if you more insteresting about image and resolution of our IP camera, please check below real shooting from IE interface. Please note that below photos arechanged from1920*1080to1000*563 Outdoor photo 1
Outdoor photo 2
indoor vision 1
indoor vision 2
ourdoornight vision 1
ourdoornight vision 2
indoor night vision 1
indoor night vision 2
We are factory!
Packing: | Package contents: |
| 1 * camera |
| 1 * manual |
| 1 * screws |
| 1 * CD |
SHIPPING:1.We will send the goods within 3-5working days after your payment is verify by Aliexpress.
2.Our free shipping only included China post air mail ,and the weight should be within 2KG. Please notice the China post air mail are slowly.
3.If you want to send by EMS.DHL and UPS, you should pay for the shipping cost.
4.When we send the goods , we will responsible for the problem in China Customs ,and the buyer should responsible for the problem in buyer’s country Customs.
5.You will trace the goods online after sending the goods 1-2 working days.
6.Please check your goods with shipping company face to face when you receive the goods.
7.If you find the camera is lost or damaged on the way. Please let the shipping company give you the prove. Then we will help you let the shipping company compensate you. Warranty:
1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.
2. We promise warranty for quality in oneyear and we will repair it free of charge. The returning shipping should be paid by customer.
3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
4. All return items must be in good condition. They must be under resalable condition. Men-made defects are not guaranteed, such as broken, scratched and so on. Feedback and Rating
We will work with you to until you are satisfied. we sincerely hope that you can leave us a positive
If, for any reasonyou are not satisfied with your purchase,please contact us through "My Messages" or "Ask Seller Questions" before leaving neutral or negative feedback.PLEASE DO NOT leaves us 1, 2, 3 -star Detailed Seller Ratings because they are equal to negative feedback.
