Product Description

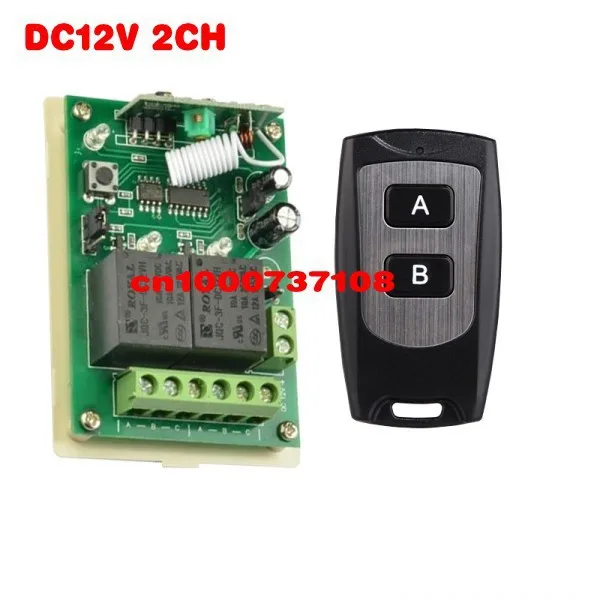

the more you order the more discount 12V 2 CH 10A RF wireless remote control system It is a learning code wireless remote control switch (receiver),the output way /working way can be change as you like ,it is easy to match the transmitter . The AK-RK02S-12 2 channel wireless remote control switch with 4 Relays. It can make the equipment turn or reverse .on/off and so on come true. The volume is small and the performance is stable and reliable ,high receive sensitivity , Application range: Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc. The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it . Output working way: 1. Self-lock ---connect the JP1 with the cutting out cap. 2. Jog---the cutting-out cap is non-occupation , JP1 and JP2 do not connect either. 3.inter-lock---- Connect the Jp2 with the Cutting out cap, Jog---- press one button is ON . loosen your finger on the same button is OFF .need one channel switch and one buttons remote control ) Self -lock----- press one button for one time is ON .press the same button again is OFF .need one channel switch and one buttons remote control Inter-lock-------press one button is ON , press another button is OFF . (need one channel switch and 2 buttons remote control Please notice that .here is the 2CH receiver and 2 buttons transmitter, you just can choose the the output way is self-lock or jog OR inter-lock Please tell me the working way that you want after you have bought it ,thank you Learning and remove method 1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully . 2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control 3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully . Technique Data1.working voltage :DC12V 2. quiescent condition :less than 6mA
3.working temperature :-40\\\'c 80\\\'c 4.receiver sensitivity : more than -105dBm
5.working frequency :315/433MHz
here is in set ,we have made it work together .so you do not have to care about what frequency are they .
6.output voltage:DC and AC is optional 7.output current : less than 3A 8.max load current:10A 9.72mm*52mm*26mm Encodeing way : Learning code wireless remote control : Working voltage: DC6V( 2pcs 2016 battery)
Working current: 30MA
Working frequency: 315MHZ/433MHZ
Transmitting distance: 50 ~100M (it is the ideal distance .it would be shortcut as the different enviroment )
Encoding type: fixed code, learning code package include :1remote (with battery) 1 receiver
