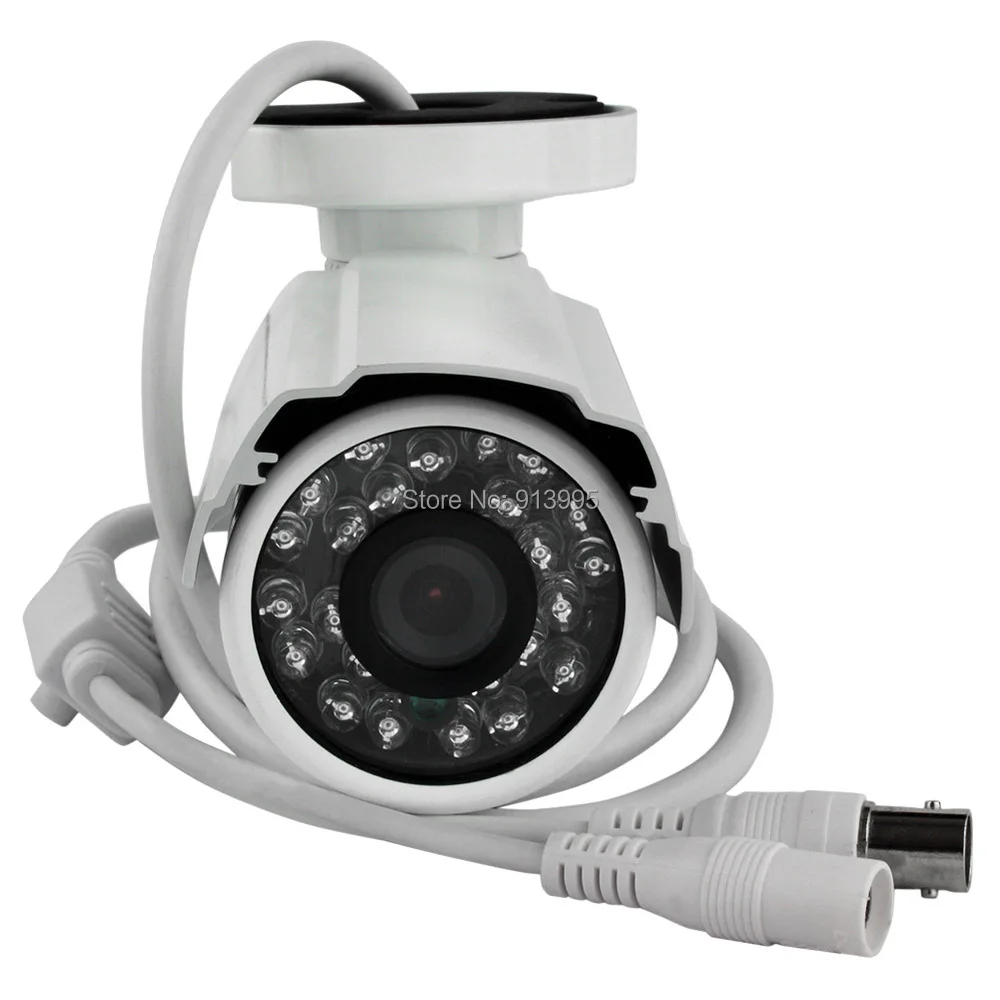

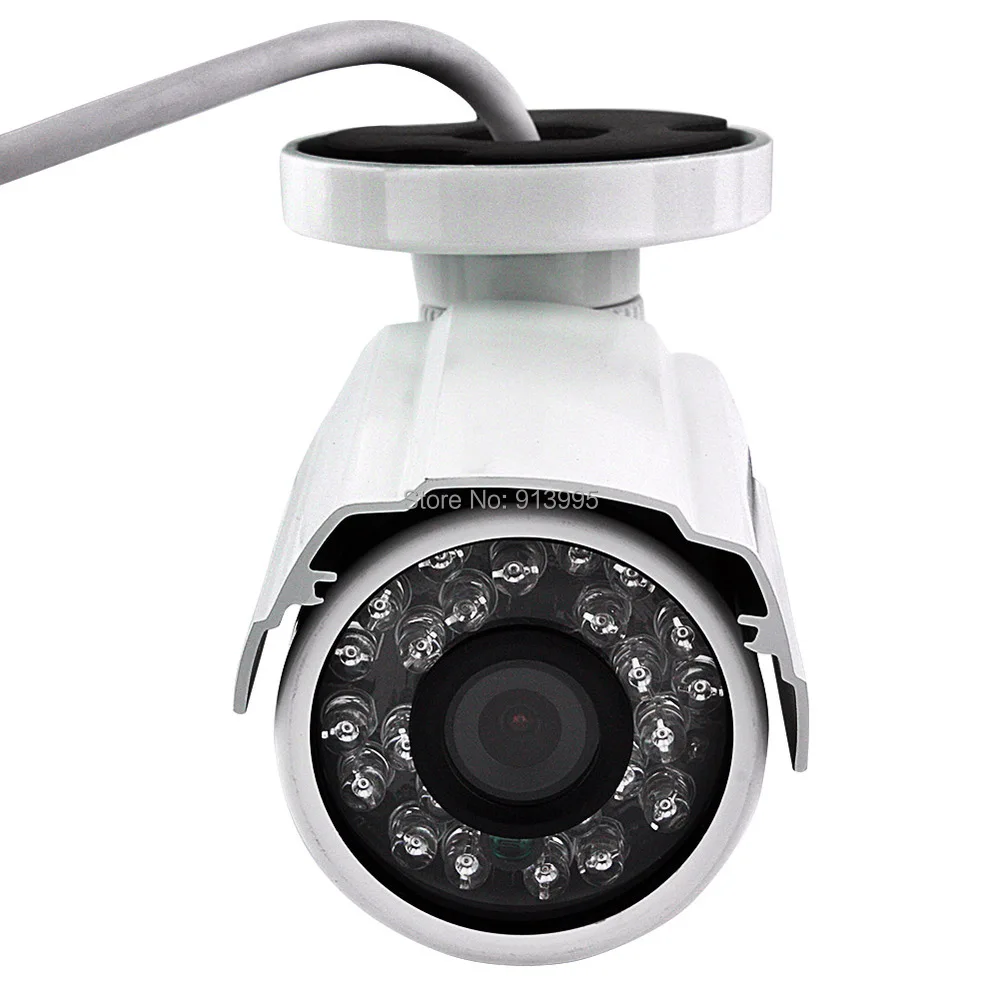

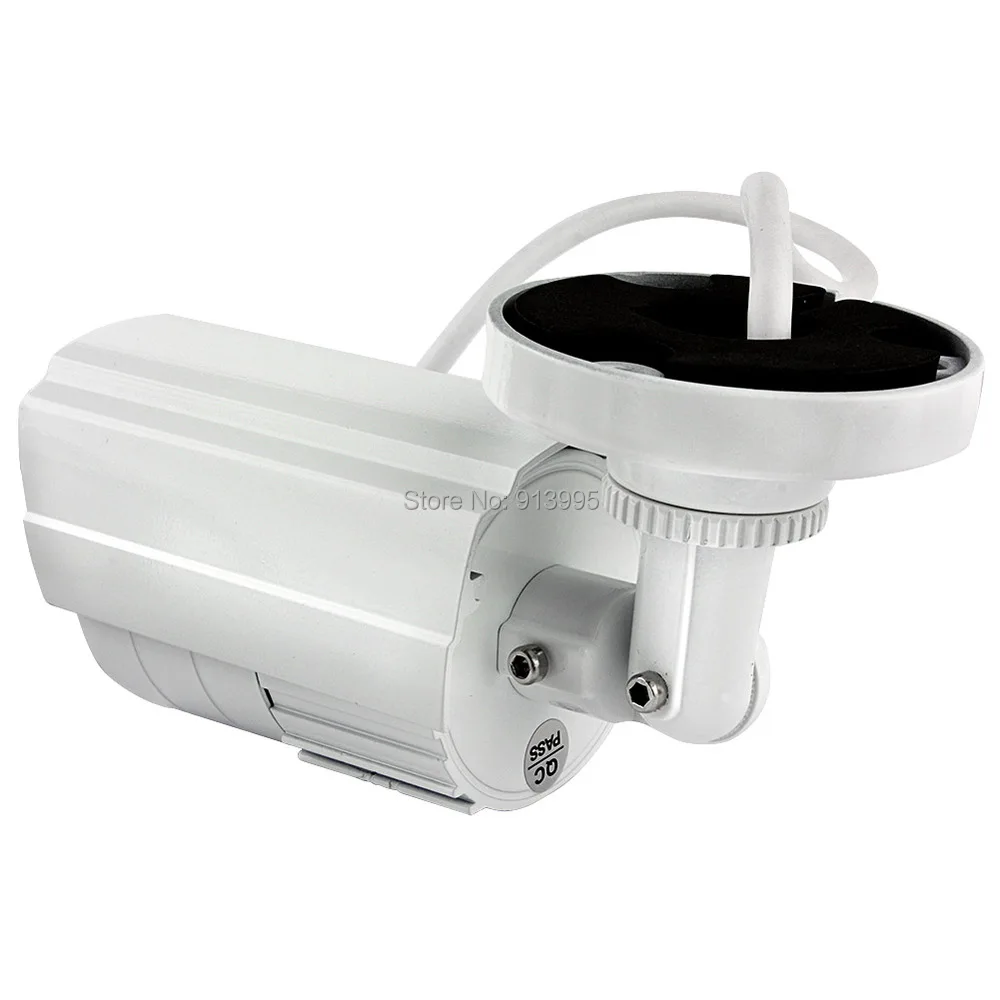

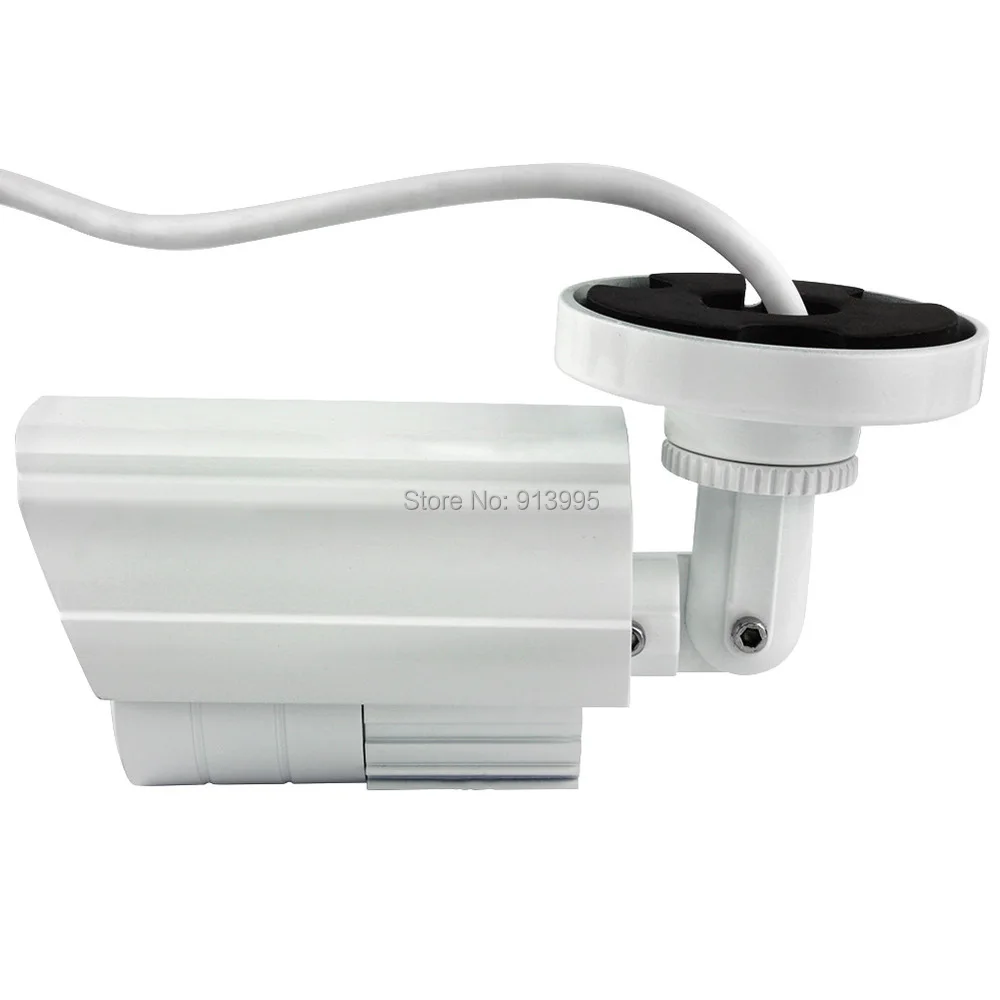

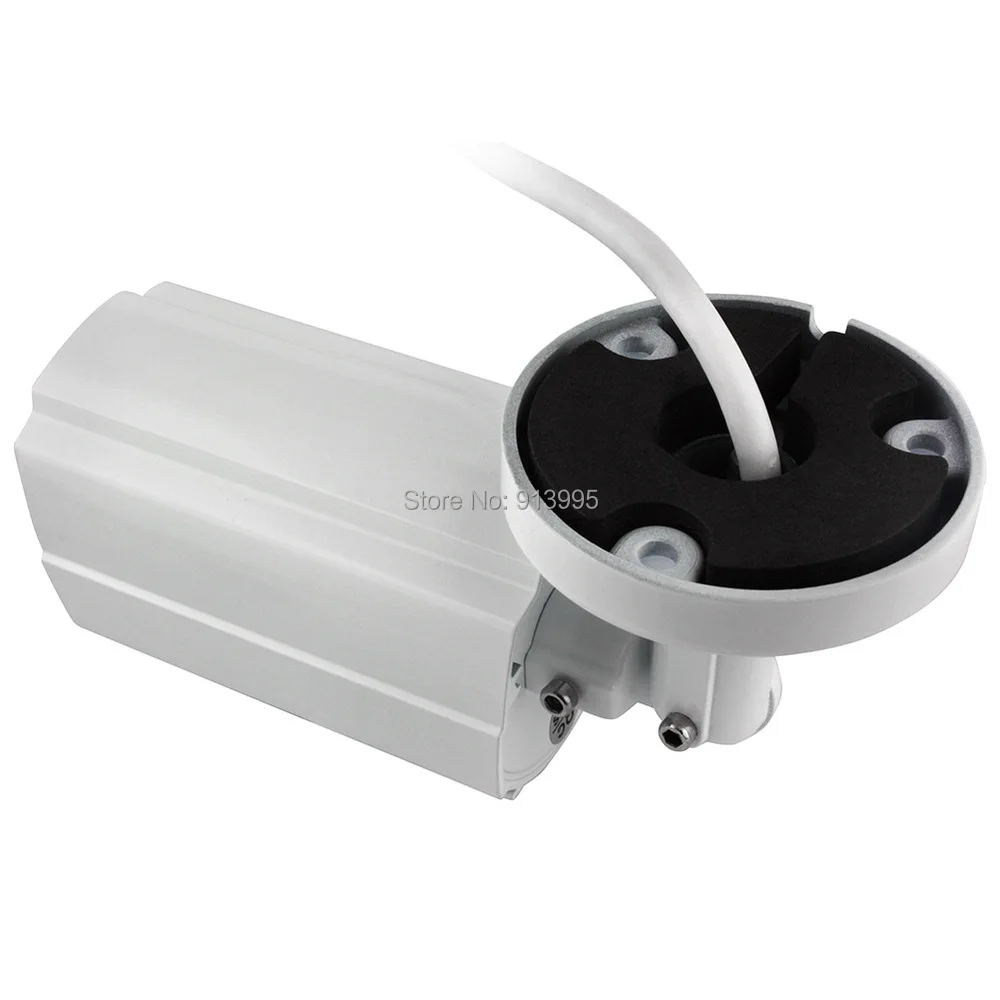

1200TVLIR LED DAY&NIGHT OUTDOOR WATERPROOF MINI CMOS CAMERAELP-6012
Feature:*Mini bullet cmos camera
*waterproof outdoor use
*IR LED for day&night vision
*Connect with any DVR recorder to realize remote surveillance, support smart phone view Specification:
| ModelNo. | ELP-6012 |
| Sensor | 1/3"CMOS 238 8520 1200TVL, |
| Horizontal Resolution | 1200TVL |
| Signal System | PAL/NTSC |
| Mini Illumination | Color: 0.1Lux @ (F1.2, AGC ON), 0Lux with IR B/W:0.01Lux @ (F1.2 AGC ON), 0Lux with IR |
| Effective Pixels | PAL:1280(H)*960(V), NTSC:1280(H)*960(V) |
| Shutter Time | PAL: 1/50~1/100,000 Sec NTSC: 1/60~1/100,000 Sec |
| Day/Night | Support IR-CUT |
| Lens | Professional Lens 3.6mm(6mm lens optional), C/CS mount |
| Sync Mode | Internal Synchronization |
| S/N Ratio | Over 58dB (AGC OFF) |
| White Balance | ATW / AWC Switchable |
| Video Output | Composite 1.0V p-p at 75 ohm |
| Gain Control | AGC ON / OFF Switchable |
| B.L.C. Function | ON/OFF Switchable |
| Work Environment | About -20 °C - 50°C, Operational Humidity: within 85%RH . |
| Power supply | DC12VA 10% |
| Power Consumption | 100mA(IR OFF) |
| IR LED/IR Range | 20m IR Range, 24PCS IR LED |
| Dimensions (mm) | |
| Special Function | WDR, OSD, Cable controller, BLC, Zoom in |
| Material | Metal |
| Weight |

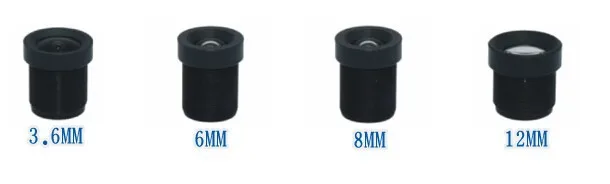

Lens choice guide:
